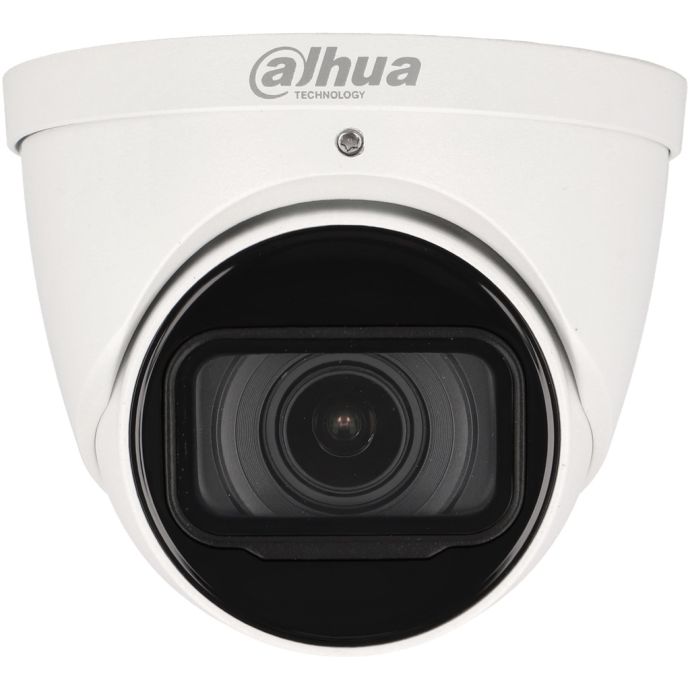

Dahua 2Mpx Varifocal 2.7-12mm IR 60m Hybrid Turret Camera

SKU
DAH-HAC-HDW1200T-Z
Brands: Dahua
€60.14 Tax included
Dahua
Availability: On request
1 to 7 days

Dahua 4 in 1 Camera Lite Series 2Mpx and Varifocal Optics 2.7-12mm

Hybrid 4 in 1 turret type camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with varifocal optics with focal length from 2.7 to 12mm and optics resolution of 2Mpx. This camera belongs to the Lite series of Dahua.

The Lite series is Dahua's most economical range, but with an advanced sensor and ISP, it will provide excellent image quality with vivid colors and details, as well as a wider viewing angle.

Its night vision has an infrared range of up to 60 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 45-132m, observing, distinguishing between people, animals or vehicles at 18-53m, recognizing people between men and women at 9-26m and identifying a face at 5-13m, even visualizing a license plate.

For image enhancement against light exposure, the camera features digital DWDR technology. It incorporates a microphone with noise reduction.

It is suitable for indoor and outdoor use, has an IP67 degree of protection. It is made of aluminum and has a net weight of 570gr.

Technical Specifications of the Dahua Lite Series 2Mpx 4-in-1 Camera with 2.8mm Fixed Lens

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

No

Lens Mount

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.6

Field of View

H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

47.4 m
(155.51 ft)

18.9 m
(62.01 ft)

9.5 m
(31.17 ft)

4.7 m
(15.42 ft)

12 mm

155.6 m
(510.50 ft)

62.2 m
(204.07 ft)

31.1 m
(102.03 ft)

15.6 m
(51.18 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 6.4 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal

Product Dimensions

φ122 mm × 104.8 mm
(φ4.80" × 4.13")

Net Weight

0.58 kg (1.28 lb)

Gross Weight

0.74 kg (1.63 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

More Information
Hight0.000
Length0.000
Width0.000
SECURITY - SYSTEMHibrid
SEGURIDAD - SERIETurret
TechnologyAHD, Analogic CVBS, HD-CVI, HD-TVI
ColorWhite
TipeTurret
EntornoExterior
Resolution2MP ~ 1080p
OpticsVarifocal
Product BrandDahua
