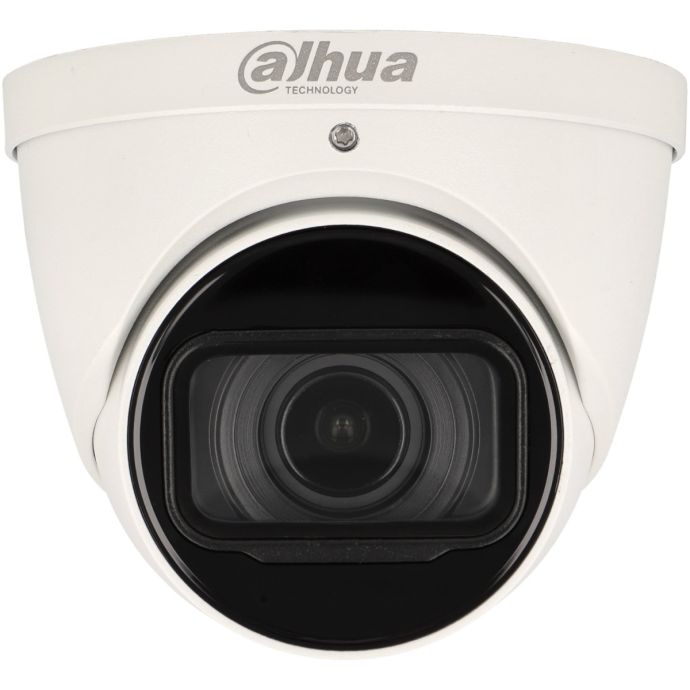

Dahua 5Mpx Varifocal 2.7-12mm IR 60m Hybrid Turret Camera

SKU
DAH-HAC-HDW1500T-Z-A-S2
Brands: Dahua
€83.85 Tax included
Availability: On request
1 to 7 days

Dahua 4 in 1 Camera Lite Series 5Mpx and Varifocal Optics 2.7-12mm

Hybrid 4 in 1 turret type camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with varifocal optics with focal length from 2.7 to 12mm and optics resolution of 5Mpx. This camera belongs to the Lite series of Dahua.

The Lite series is Dahua's most economical range, but with an advanced sensor and ISP, it will provide excellent image quality with vivid colors and details, as well as a wider viewing angle.

Its night vision has an infrared range of up to 60 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 69-192m, observing, distinguishing between people, animals or vehicles at 28-77m, recognizing people between men and women at 14-38m and identifying a face at 7-19m, even visualizing a license plate.

For image enhancement against light exposure, the camera features digital DWDR technology. It incorporates a microphone with noise reduction.

It is suitable for indoor and outdoor use and has an IP67 degree of protection. It is made of metal and has a net weight of 570gr.

-
+

Technical Specifications of the Dahua 4 in 1 Camera Lite Series 5Mpx and Varifocal Optics 2.7-12mm

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

2592(H)×1944(V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F1.8, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 60m (197feet)

IR On/Off Control

Auto / Manual

IR LEDs

2

Lens

Lens Type

Motorized lens / Fixed iris

Mount Type

Board-in

Focal Length

2.7-12mm

Max Aperture

F1.8

Angle of View

H: 93°~30°

V: 68°~22°

Focus Control

Motorized

Close Focus Distance

800mm

31.50''

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video

Resolution

5MP (2592×1944)

Frame Rate

20fps@5MP, 25/30fps@4MP, 25/30fps@1080P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.



DORI

Definition

Distance

Wide

Tele

Detect

25px/m (8px/ft)

67m(220ft)

198m(650ft)

Observe

63px/m (19px/ft)

27m(89ft)

79m(259ft)

Recognize

125px/m (38px/ft)

13m(43ft)

39m(128ft)

Identify

250px/m (76px/ft)

7m(22ft)

19m(62ft)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

Built-in Mic

Eelectrical

Power Supply

POC/12V DC ±30%

Power Consumption

Max 6.6W (12V DC, IR on)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Aluminium

Dimensions

Φ122mm×104mm (Φ4.8"×4.1")

Net Weight

0.45kg (0.99lb)

Gross Weight

0.61kg (1.34lb)

More Information
Hight 0.000
Length 0.000
Width 0.000
System Hibrid
SERIE Turret
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Color White
Tipe Turret
Entorno Exterior
Resolution 5MP
Optics Varifocal
Product Brand Dahua
