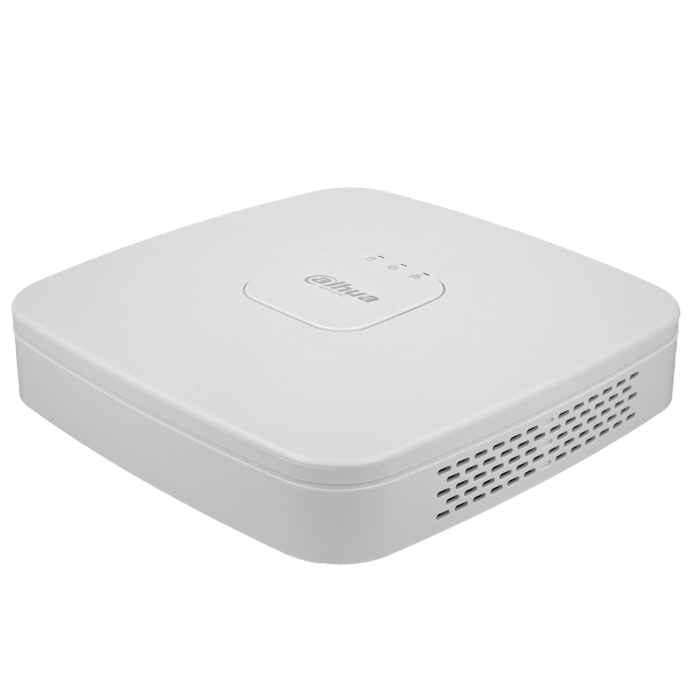

Dahua 8 Channel Hybrid DVR 2Mpx 2 Channel IP 6Mpx 4 Series DVR

SKU
DAH-XVR4108C-I
Brands: Dahua
€96.56 Tax included
Dahua
Availability: On request
1 to 7 days

Dahua 8 Channel Hybrid 2Mpx 2 Channel IP 6Mpx 4 Series Recorder

This recorder has 8 IP channels. It is a DVR recorder from Dahua, compatible with video resolutions: AI, H.265 +, H.265, H.264 +, ,H.264.

It has simultaneous HDMI and VGA outputs. In addition a resolution of Mpx and capacity of a hard disk up to 6 Tb. Different alarm modes available: motion detection, video loss, tampering thanks to the 8 channels filtered to people and motor vehicles.

The recorder is capable of using up to 10 IP channels, 2 of which are default and the other 8 are analog but can be converted to IP channels. With this recorder what we do is to reduce false alarms caused by leaves, rain and changes in lighting conditions.

Dahua WIZSENSE recorders are designed to take advantage of video surveillance with artificial intelligence. They are easy to configure for any end user and thus enhance the recognition and intrusion detection features. Among other of the main functions that SMD Plus has

If you combine this recorder with cameras with the same WizSense technology you get a maximum of 2% error rate.

Thanks also to the artificial intelligence it has the face recognition functionality which, for example, if you enter a photo of a user allows you to know how many times it has appeared, looking for it in the recorder's database.



Dahua 8 Channel Hybrid 2Mpx 2 Channel IP 6Mpx 4 Series Recorder

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

SMD Plus

SMD Plus by Recorder

8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 1080p@ 25/30 fps, 720p@25/30 fps
2. TVI: 1080p@ 25/30 fps, 720p@25/30 fps
3. AHD: 1080p@ 25/30 fps, 720p@25/30 fps
4. CVBS: PAL/NTSC

IP Camera Input

Up to 10 channels of IPC access

2 IP channels by default + 8 channels (analog channels are converted to IP channels)

incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps

*After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled.

Encoding Capacity

Main Stream:

the 1st channel 1080N/720p(1 fps–25/30

fps), others 1080N/720p(1 fps–15fps); 960H/D1/CIF/(1fps–25/30 fps)

Sub stream:

CIF (1fps–7 fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA

HDMI/VGA : 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression Standard

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS, Android

Interoperability

ONVIF 21.06; CGI Conformant

Browser

Chrome
IE9 or later
Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection, alarm

Recording Playback

1/4/9

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback

Alarm

General Alarm

Motion detection, video loss, , tampering

Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

Ports

Audio Input

1-channel RCA

8-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.

USB

2 USB ports (USB 2.0)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 1.5 A

Power Consumption

< 7W

Net Weight

0.50 kg (1.10 lb)

Gross Weight

1.07 kg (2.36 lb)

Product Dimensions

204.6 mm × 210.9 mm × 45.6 mm (8.06'' × 8.30'' × 1.80'') (W × D × H)

Packaging Dimensions

256.0 mm × 330.0 mm × 101.0 mm (10.08" × 12.99" × 3.98") (W × D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

0%–90% (RH)

Installation

Desktop

Certifications

FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

More Information
Hight0.000
Length0.000
Width0.000
SECURITY - SYSTEMIP
SEGURIDAD - SERIE2Mpx
Event notifierNo
No. CCTV Recorder Inputs8 IP
Product BrandDahua
Write Your Own Review
You're reviewing:Dahua 8 Channel Hybrid DVR 2Mpx 2 Channel IP 6Mpx 4 Series DVR
Your Rating
File Label Size Download
pdf Ficha Técnica Grabador DVR 8 Canales Híbrido 1Mpx 2 Canales IP 6Mpx Serie 4 de Dahua 125.5 KB Download
