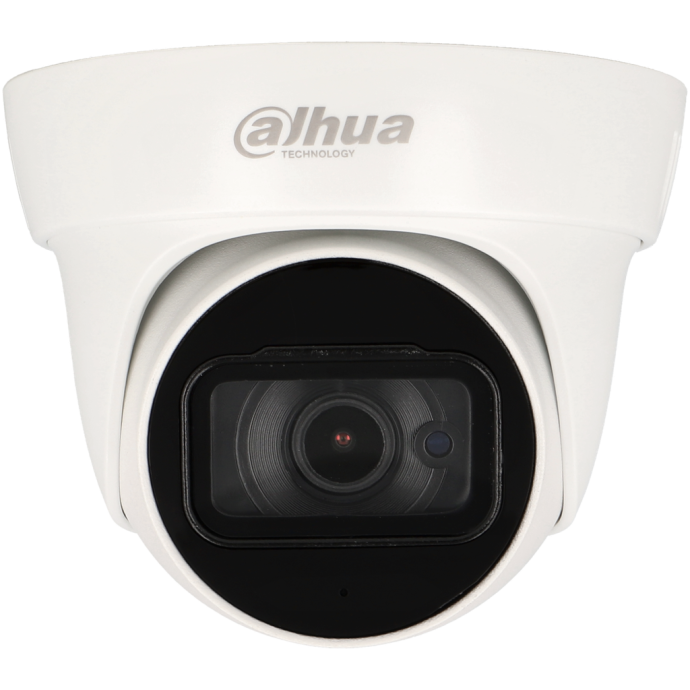

Dahua 8Mpx Fixed 2.8mm IR 30m Hybrid Turret Camera

SKU
DAH-HAC-HDW1800TL-A
Brands: Dahua
€54.21 Tax included
Availability: On request
1 to 7 days

Dahua Lite Series 8Mpx 4 in 1 Camera with 2.8mm Fixed Optics

Hybrid 4 in 1 turret type camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with fixed optics with 2.8mm focal length and 8Mpx optical resolution. This camera belongs to the Lite series of Dahua.

The Lite series is Dahua's most economical range, but with an advanced sensor and ISP, it will provide excellent image quality with vivid colors and details, as well as a wider viewing angle.

Its night vision has an infrared range of up to 30 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 75m, observing, distinguishing between people, animals or vehicles at 30m, recognizing people between men and women at 15m and identifying a face at 8m, even visualizing a license plate.

For image enhancement against light exposure, the camera has digital DWDR technology. It incorporates a microphone with noise reduction.

It is suitable for indoor and outdoor use and has an IP67 degree of protection. It is made of metal and plastic and has a net weight of 300gr.

-
+

Technical Specifications of Dahua 4 in 1 Camera Lite Series 8Mpx and Fixed Optics 2.8mm

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

3840 (H)× 2160 (V), 4K

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

Fill Light Working Distance

30 m (98.4 ft)

IR On/Off Control

Auto; manual

IR LED Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8mm; 3.6mm

Max. Aperture

F2.0

Angle of View

2.8mm: 125° x 105° x 56° (diagonal x horizontal x vertical)
3.6mm: 104° x 87° x 47° (diagonal x horizontal x vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8mm: 1.0 m (3.3 ft)
3.6mm: 1.9 m (6.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

74.7 m (245.1 ft)

29.9 m (98.1 ft)

14.9 m (48.9ft)

7.5 m

(24.6 ft)

3.6mm

106.7 m (350.1 ft)

42.7 m (140.1 ft)

21.3 m (69.9 ft)

10.7 m (35.1 ft)

Video

Frame Rate

CVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps;
AHD: 4K@15fps;
TVI: 4K@15fps;
CVBS: 960H

Resolution

4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/WDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel, built-in mic (-A)

Power

Power Supply

12V ±30% DC

Power Consumption

Max 4.3W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F);

<95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F);

<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Cover: plastic; inner core: metal

Camera Dimensions

Φ97 mm × 85.8 mm (Φ3.82"×3.38")

Net Weight

0.3Kg (0.66lb)

Gross Weight

0.38Kg (0.84lb)

More Information
Hight 0.000
Length 0.000
Width 0.000
SECURITY - SYSTEM Hibrid 4 on 1
SERIE Turret
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Color White
Tipe Turret
Entorno Exterior
Resolution 8MP ~ 4K
Optics Fixed
Product Brand Dahua
