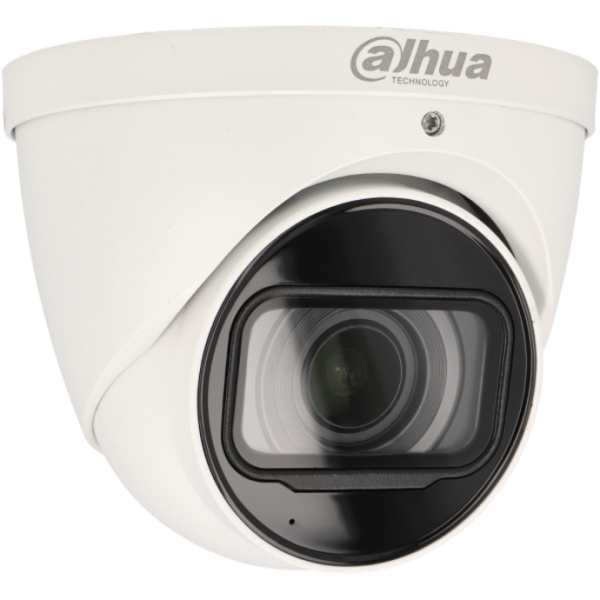

Dahua 8Mpx Varifocal 2.7-13.5mm IR 60m Hybrid Turret Camera

SKU
DAH-HAC-HDW1801T-Z-A-S2
Brands: Dahua
€109.26 Tax included
Availability: On request
1 to 7 days

Dahua 4 in 1 Camera Lite Series 8Mpx and Varifocal Optics 2.7-13.5mm

Hybrid 4 in 1 turret type camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with varifocal optics with focal length from 2.7 to 13.5mm and optics resolution of 8Mpx. This camera belongs to the Lite series of Dahua.

The Lite series is Dahua's most economical range, but with an advanced sensor and ISP, it will provide excellent image quality with vivid colors and details, as well as a wider viewing angle.

Its night vision has an infrared range of up to 60 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 85-280m, observing, distinguishing between people, animals or vehicles at 34-112m, recognizing people between men and women at 17-56m and identifying a face at 9-28m, even visualizing a license plate.

For image enhancement against light exposure, the camera has digital WDR technology. It incorporates a microphone with noise reduction.

It is suitable for indoor and outdoor use and has an IP67 degree of protection. It is made of metal and has a net weight of 570gr.

-
+

Technical Specifications of Dahua 4 in 1 Lite Series 8Mpx Varifocal Optics 2.7-13.5mm Camera

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

3840(H)×2160(V), 8MP

Scanning System

Progressive

Electronic Shutter Speed

 1/25~1/100000s



Minimum Illumination

0.01Lux/F1.8, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 60m (197feet)

IR On/Off Control

Auto / Manual

IR LEDs

2

Lens

Lens Type

Motorized lens / Fixed iris

Mount Type

Board-in

Focal Length

2.7-13.5mm

Max Aperture

F1.5

Angle of View

 114°~32°

Focus Control

Motorized

Close Focus Distance

800mm

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video

Resolution

8MP (3840×2160)

Frame Rate

15fps@4k, 25fps@5MP, 4Mpx/1080P

Video Output

1 x BNC conmutable HD-CVI / HD-TVI / AHD / CVBS

Day/Night

Color

OSD Menu

Multi-language

BLC Mode

Si

WDR

WDR(120dB)

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.



DORI

Definition

Distance

Wide

Tele

Detect

25px/m (8px/ft)

85m

280m

Observe

63px/m (19px/ft)

34m

112m

Recognize

125px/m (38px/ft)

17m

56m

Identify

250px/m (76px/ft)

9m

28m

More Information
Hight 0.000
Length 0.000
Width 0.000
System Hibrid 4 on 1
SERIE Turret
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Color White
Tipe Turret
Entorno Exterior
Resolution 8MP ~ 4K
Optics Varifocal
Product Brand Dahua
