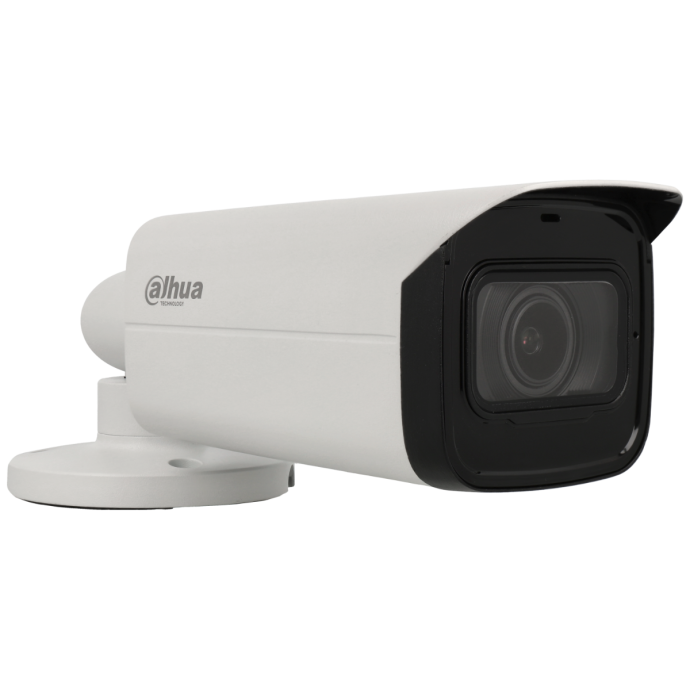

Dahua 8Mpx Varifocal 2.7-13.5mm IR 80m Hybrid Bullet Camera

SKU
DAH-HAC-HFW2802TU-Z-A
Brands: Dahua
€138.91 Tax included
Free shipping
(Iberian Peninsula)
Dahua
Availability: On request
1 to 7 days

Dahua 4 in 1 Camera Pro Series 8Mpx and Varifocal Optics 2.7-13.5mm

4 in 1 bullet type hybrid camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with fixed optics with 2.8mm focal length and 5Mpx optics resolution. This camera belongs to Dahua Pro series.

The Pro series includes face detection function, perimeter function and people counting. Thanks to deep learning artificial intelligence algorithms, accuracy has been significantly improved. In addition, the series features starlight and intelligent infrared technology. This series is fully protected against dust and water and is IP67 certified.

Its night vision has an infrared range of up to 80 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 83-190m, observing, distinguishing between people, animals or vehicles at 33-76m, recognizing people between men and women at 17-38m and identifying a face at 8-19m, even visualizing a license plate.

For image enhancement against light exposure, the camera features digital DWDR technology.

It is suitable for indoor and outdoor use and has an IP67 protection rating. It is made of metal and has a net weight of 790gr.

Technical Specifications of the Dahua Pro Series 8Mpx 4-in-1 Camera with 2.7-13.5mm Varifocal Lens

Camera

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.5 (Color, 30 IRE)
0.0001 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65dB

Illumination Distance

80 m (262.47 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

H: 113°–47°; V: 60°–26°; D: 133°–53°

Iris Control

Fixed

Close Focus Distance

1.2 m (3.94 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

83.4 m

(273.62 ft)

33.4 m

(109.58 ft)

16.7 m

(54.79 ft)

8.3 m

(27.23 ft)

13.5 mm

189.6 m

(622.05 ft)

75.8 m

(248.69 ft)

37.9 m

(124.34 ft)

19.0 m

(62.34 ft)

Video

Video Frame Rate

CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps
AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps
TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps
CVBS: PAL: 960H; NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR

Defog

Electronic defog

Digital Zoom

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 10.9 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")

Net Weight

0.79 kg (1.74 lb)

Gross Weight

1.1 kg (2.43 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

More Information
Hight0.000
Length0.000
Width0.000
SECURITY - SYSTEMHibrid 4 on 1
SEGURIDAD - SERIEBullet
TechnologyAHD, Analogic CVBS, HD-CVI, HD-TVI
ColorWhite
TipeBullet
EntornoExterior
Resolution8MP ~ 4K
OpticsVarifocal
Product BrandDahua
