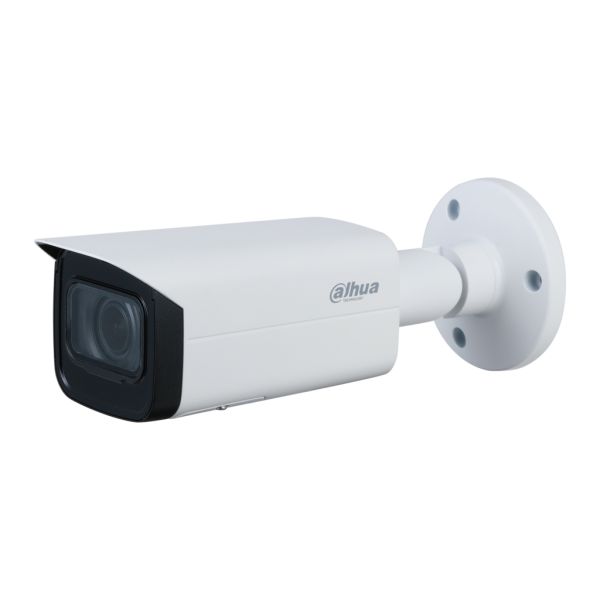

Dahua 8MPx Varifocal Motorized IP Bullet Camera 2.7-13.5mm IR 60m MicroSD WizSense

SKU
DAH-IPC-HFW3841T-ZS-S2
Brands: Dahua
€332.62 Tax included
Free shipping
(Iberian Peninsula)
Dahua
Availability: On request
1 to 7 days

Dahua Hybrid 8MPx Varifocal Motorized 2.7-13.5mm IR 60m Bullet Camera

Looking for a professional security camera that delivers crisp, clear images no matter what the conditions? Dahua's DAH-IPC-HFW3841T-ZS-S2 is just what you need. This 8Mpx bullet camera is designed to provide you with the best image quality, thanks to its 3840x2160 pixels resolution and its 2.7-13.5mm motorized varifocal lens, it offers flexibility in focusing. In addition, its Starlight technology guarantees impressive night vision, with an IR range of up to 60 meters.

Compatible with different video compressions H.265, H.264, H.264B, MJPEG (only compatible with secondary transmission), so there is no loss of quality at any time.

The DAH-IPC-HFW3841T-ZS-S2 is perfect for a variety of uses, from home surveillance to business and office security, this camera adapts to any environment. Its waterproof and dustproof design(IP67) makes it ideal for outdoor use, while its ability to transmit video over long distances without loss of quality makes it a reliable choice for any installation. It incorporates a built-in microphone and has a microSD slot supporting up to 256GB cards (card not included).

Its wide dynamic range (WDR) of 120dB ensures that you get clear and detailed images, even in difficult lighting conditions. And with its low power consumption, it is an efficient and economical choice for any security project.

It allows POE or 12Vdc power supply. This camera belongs to the WizSense series of products, which integrates an independent AI chip and a deep learning algorithm. It is focused on person and vehicles accurately, allowing it to act quickly on defined objects.

In short, it is a robust, versatile and easy-to-use security camera that offers you peace of mind and protection 24 hours a day. Whether you need to keep an eye on your home, business or anywhere else, this camera is the perfect choice to keep everything under control - enhance the security of your environment with Dahua's advanced technology!

Technical Specifications of the Dahua 8MPx Motorized Varifocal 2.7-13.5mm IR 60m Hybrid Bullet Camera

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 60 m (196.85 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 109°–30°
Vertical: 56° –17°
Diagonal: 131° –35°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

88.3 m
(289.70 ft)

35.3 m
(115.81 ft)

17.7 m
(58.07 ft)

8.8 m
(28.87 ft)

T

289.7 m
(950.46 ft)

115.7 m
(379.59 ft)

57.9m
(189.96 ft)

29.0 m
(95.14 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

AI SSA

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

AI Coding

AI H.265
AI H.264

Video Frame Rate

Main stream: 3840 × 2160 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×
1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Stabilization

Electronic Image Stabilization (EIS)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

AFSA

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

-ZAS:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception

-ZS:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (Only - ZAS supports)

Audio Output

1 channel (RCA port) (Only - ZAS supports)

Alarm Input

1 channel in: wet contact, 5 mA 3 V–5 VDC (Only - ZAS supports)

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC (Only - ZAS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 4 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH

Storage Temperature

–40°C to +60°C (–40°F to 140°F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

244.1 mm × 79.0 mm × 75.9 mm
(9.61" × 3.11" × 3.00") (L × W × H)

Net Weight

820 g (1.81 lb)

Gross Weight

1090 g (2.40 lb)

More Information
Hight0.000
Length0.000
Width0.000
SECURITY - SYSTEMIP
SEGURIDAD - SERIEBullet
TechnologyIP
ColorWhite
TipeBullet
EntornoExterior
Resolution8MP ~ 4K
OpticsVarifocal
Product BrandDahua
