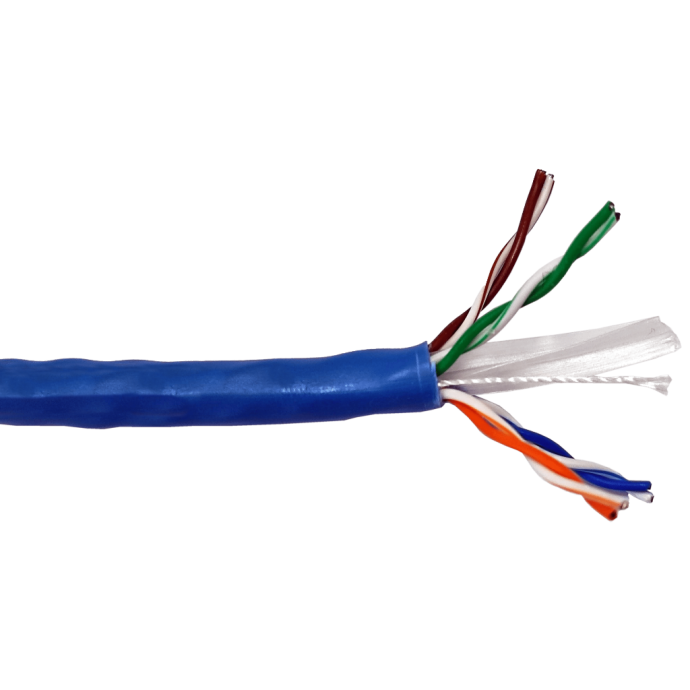

Dahua Cat6 Indoor UTP Cable Blue Cu CPR ECA LSZH in 305m Reel

SKU
DAH-PFM923I-6UN-C
Brands: Dahua
€143.99 Tax included
Dahua
Availability: In stock
24/48 Hours

Dahua CPR Eca Oxygen Free Category 6 UTP Cable CPR Eca

Introducing the Dahua PF923-6UN-C category 6 cable, which guarantees excellent data transmission, stable, fast and secure. Ideal for home projects or business environments, where constant connectivity is essential.

The cable is category 6, guaranteeing performance up to 1Gbps and frequencies up to 250MHz. The cable is composed of 4 pairs of twisted wires with a polyester separator cord. The particularity of this cable is that it is manufactured with oxygen free copper. The oxygen free cable or OFC, is characterized for being manufactured with high purity copper and a minimum oxygen content, which provides the cable with a series of advantages such as better conductivity, greater durability, since it is more resistant to oxidation and corrosion and reduction of interferences, since it reduces electrical noise, improving the quality of the signal.

Its jacket is resistant to fire and moderate environmental conditions, ensuring greater durability. The cable is CPR Eca certified and is suitable for use in low risk environments.

The cable is presented in a 305 meter reel, with cardboard box. It has a blue jacket and is suitable for indoor installations.

Technical Specifications of Dahua CPR Eca Oxygen-Free Category 6 UTP Cable

Conductor

Material

Oxygen free copper (99.97% purity)

Diameter

0.53mm ± 0.01 mm

Insulation

Material

HDPE

Min. Average Thickness

0.21 mm

Diameter

0.95 mm ± 0.1 mm

Color (4 Pairs)

Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Separator

Material

PE

Specification

Translucent 4.5 × 0.4 mm

Rip Cord

Material

Polyester

Specification

500D

Sheath

Material

LSZH

Min. Average Thickness

0.5 mm

Diameter

6.0 mm ± 0.3 mm

Color

White

Electrical

Max. DC Resistance of a Single Conductor

8.7 Ω/100 m

Min. Insulation Resistance

5000MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1KV DC for 1 min

Transmission

Characteristic Impedance

100 ± 15Ω

Near End Cross Talk

≥39.30 dB/100 m@250 MHz

Max. Attenuation

34.8 dB/100 m@250 MHz

Return Loss

≥17.3 dB/100 m@250 MHz

Mechanical

Tensile Strength

Sheath≥10 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥125%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Environmental

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥8 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operation Temperature

–20°C to +60°C (–4°F to 140°F)

Installation Temperature

0°C to +50°C (32°F to 122°F)

Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Security

Vertical Fire Propagation Test

Comply with IEC 60332-1-2

Packaging

Cable Length

305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)

Inner Carton Dimensions

416.0 mm × 412.0 mm × 220.0 mm (16.38" × 16.22" × 8.66") (L × W × H)

Packaging Method

305.0 m (1000.66 ft) a carton, one carton with 2 inner cartons

Net Weight

≥10.5 kg (23.15 lb)

Gross Weight

≥11.5 kg (25.35 lb)

Compliance

Executive Standards

Q/DXJ 067-2019, EN50575-2014

Certification

Certification

CPR Eca



Transmission Characteristics

(100 m at 20°C) (328.08 ft at 68°F)

Frequency (MHz)

Phase delay ≤ ns

IL ≤ dB

TCL≥ dB﹡

EL TCTL≥ dB﹡

NEXT ≥ dB

PS NEXT ≥ dB

1

n/s

n/s

50.0

35.0

n/s

n/s

4

552.0

4.0

44.0

23.0

66.3

63.3

8

547.0

5.6

41.0

16.9

61.8

58.8

10

545.0

6.4

40.0

15.0

60.3

57.3

16

543.0

8.1

38.0

10.9

57.2

54.2

20

542.0

9.0

37.0

9.0

55.8

52.8

25

541.0

10.1

36.0

7.0

54.3

51.3

30﹡

540.6

11.0

35.2

5.5

53.1

50.1

31.25

540.0

11.3

35.1

n/s

52.9

49.9

62.5

539.0

16.3

32.0

n/s

48.4

45.4

100

538.0

21.0

30.0

n/s

45.3

42.3

200

537.0

30.7

27.0

n/s

40.8

37.8

250

536.0

34.8

26.0

n/s

39.3

36.3

Frequency (MHz)

EL FEXT ≥ dB

PS EL FEXT ≥ dB

RL ≥ dB

Delay skew ≤ ns

Zc(Ω)

1

n/s

n/s

n/s

n/s

n/s

4

56.0

53.0

23.0

45.0

100±15

8

49.9

46.9

24.5

10

48.0

45.0

25.0

16

43.9

40.9

25.0

20

42.0

39.0

25.0

25

40.0

37.0

24.3

30﹡

38.5

35.5

23.8

31.25

38.1

35.1

23.6

62.5

32.1

29.1

21.5

100

28.0

25.0

20.1

200

22.0

19.0

18.0

250

20.0

17.0

17.3

More Information
EAN6923172598356
Hight0.410
Length0.240
Width0.410
CTI - SystemCAT6
CTI - Serie305m
EntornoInterior
ColorBlue
Cobertura Exterior CablesLSFH
Conductor Interno CablesCopper (Cu)
Product BrandDahua
