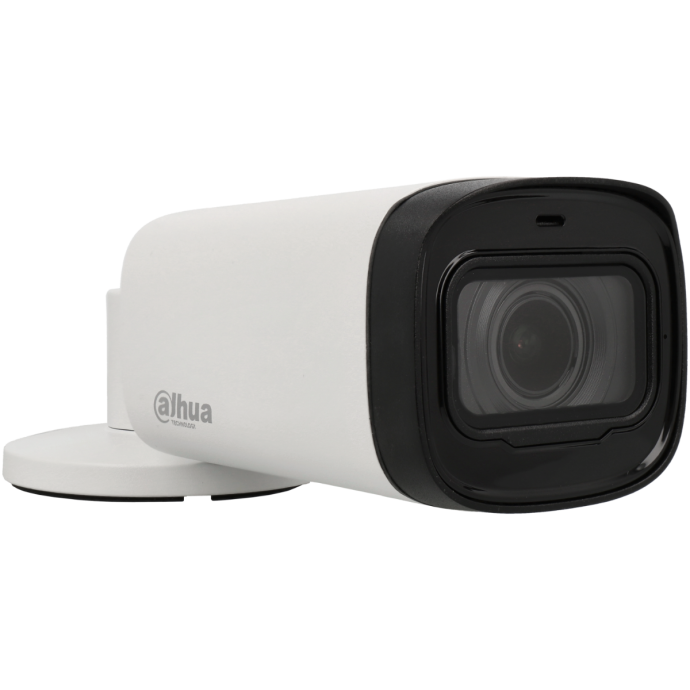

Dahua Hybrid 5Mpx Varifocal 2.7-12mm IR 60m Bullet Camera

SKU
DAH-HAC-HFW1500R-Z-IRE6-A-S2
Brands: Dahua
€77.92 Tax included
Availability: On request
1 to 7 days

Dahua 5Mpx Varifocal 2.7-12mm IR 60m Hybrid Bullet Camera 5Mpx Varifocal 2.7-12mm IR 60m

4-in-1 hybrid bullet camera with switchable output (HD-CVI / HD-TVI / AHD / CVBS), with varifocal optics with focal length from 2.7 to 12mm and optical resolution of 5Mpx. This camera belongs to the Lite series of Dahua.

The Lite series is Dahua's most economical range, but with an advanced sensor and ISP, it will provide excellent image quality with vivid colors and details, as well as a wider viewing angle.

Its night vision has an infrared range of up to 60 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that is closest to what we need. In this case, this camera is capable of: detecting moving objects at 69-191.6m, observing, distinguishing between people, animals or vehicles at 27.6-76.64m, recognizing people between men and women at 13.8-38.32m and identifying a face at 6.9-19.13m, even visualizing a license plate.

For image enhancement against light exposure, the camera features digital WDR technology. It incorporates a microphone with noise reduction.

It has an IP67 degree of protection. It is made of metal and has a net weight of 550gr.

-
+

Technical Specifications of the Dahua Lite Series 5Mpx Varifocal 2.7-12mm IR 60m Hybrid Bullet Camera

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

S/N Ratio

> 65 dB

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance

60 m (196.9 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

4

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Auto Focus

N/A

Mount Type

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.6

Field of View

Diagonal: 39°–130°
Horizontal: 34°–107°
Vertical: 19°–55°

Iris Type

Fixed iris

Close Focus Distance

0.5 m (1.64 ft)

DORI Distance



Detect

Observe

Recognize

Identify

2.7 mm

69 m (226.37 ft)

27.6 m (90.55 ft)

13.8 m (45.27 ft)

6.9 m (22.63 ft)

12 mm

191.6 m (628.6 ft)

76.64 m (251.44 ft)

38.32 m (125.72 ft)

19.16 m (62.86 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Audio Output

One channel built-in mic (-A)

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

DC 12V ±30%

Power Consumption

Max 9.8W (12V DC, IR on)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F); <95% (non-condensation)

Storage Temperature

–30°C to +60°C (–22°F to +140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

209.9 mm × 90.4 mm × 90.4 mm(8.26" × 3.56" × 3.56)

Net Weight

0.55 kg (1.21 lb)

Gross Weight

0.7 kg (1.54 lb)

More Information
Hight 0.000
Length 0.000
Width 0.000
System Hibrid 4 on 1
SERIE Bullet
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Color White
Tipe Bullet
Resolution 5MP
Optics Varifocal
Product Brand Dahua
