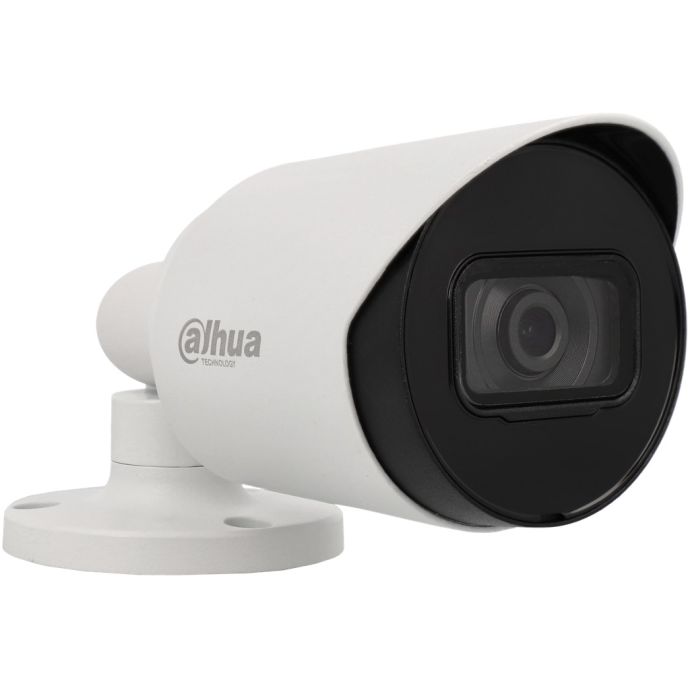

Dahua Hybrid Bullet Camera 2Mpx Fixed 3.6mm White Light 30m

SKU
DAH-HAC-HFW1200T
Brands: Dahua
€28.80 Tax included
Availability: On request
1 to 7 days

Dahua Hybrid Bullet Camera 2Mpx Fixed 3.6mm White Light 30m

4 in 1 bullet type hybrid camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with fixed lens with focal length 3. 6mm and optical resolution of 2Mpx. This camera belongs to the Lite series of Dahua.

The Lite series is Dahua's most economical range, but with an advanced sensor and ISP, it will provide excellent image quality with vivid colors and details, as well as a wider viewing angle.

Its night vision has an infrared range of up to 30 meters away. For image enhancement in bright light, the camera has digital WDR technology. It also has HD and SD output which are switchable. It incorporates microphone with noise reduction.

This camera is capable of: detecting moving objects at 39m, observing, distinguishing between people, animals or vehicles at 15m, recognizing people between men and women at 8m and identifying a face at 4m, even visualizing a license plate.

It has an IP67 degree of protection, is made of metal and has a net weight of 360 grams.

-
+

Technical Specifications of the Dahua Lite Series 2Mpx Fixed 3.6mm White Light 30m Hybrid Bullet Camera

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Minimum Illumination

0.02Lux/F1.9, 30IRE, 0Lux IR on

Fill Light Working Distance

30 m (98.4 ft)

IR On/Off Control

Auto; manual

IR LED Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.9

Field of View

2.8 mm: 119° x 101° x 54°

(diagonal x horizontal x vertical)
3.6 mm: 100° x 84° x 45°

(diagonal x horizontal x vertical)
6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft)
6 mm: 2 m (6.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.6 ft)

15.4 m (50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

3.6 mm

49.7 m (163.1 ft)

19.9 m (65.3 ft)

9.9 m

(32.5 ft)

5 m

(16.4 ft)



6 mm

82.8 m (271.7 ft)

33.1 m (108.6 ft)

16.6 m (54.5 ft)

8.3 m

(27.2 ft)

Video

Frame Rate

CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H

Resolution

1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Audio Output

One channel built-in mic (-A)

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3.3W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

174.5 mm × 72.3 mm × 70.6 mm ( 6.87" × 2.85" × 2.78" )

Net Weight

0.36 Kg (0.79 lb)

Gross Weight

0.46 Kg (1.01 lb)

More Information
Hight 0.000
Length 0.000
Width 0.000
System Hibrid 4 on 1
SERIE Bullet
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Color White
Tipe Bullet
Resolution 2MP ~ 1080p
Optics Fixed
Product Brand Dahua
