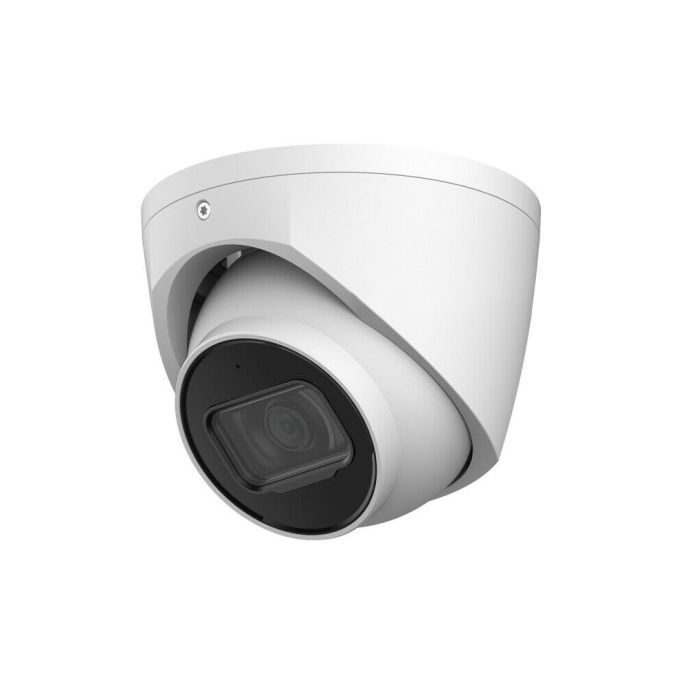

Dahua IP Turret Camera 4Mpx Fixed 2.8mm IR30m MicroSD

SKU
SAM4763
Brands: Dahua
€86.91 Tax included
Availability: On request
1 to 7 days

4Mpx Turret IP Camera with 2.8mm Fixed Optic and MicroSD SAM-4763 from Dahua

Turret security IP camera with 4Mpx resolution for outdoors and microSD for local storage from Dahua.

This camera with a progressive scanning system can show clear images up to 30 meters away since it has 2 IR LEDs and starlight technology.

Its optics are fixed and have a focal length of 2.8mm, with fields of view of 102º horizontally and 55º vertically. Supports video compressions: H.265/H.264/H.264B/MJPEG.

The camera has a built-in microphone, it connects through the network via RJ45 port. It can be powered by current (12Vdc) or through the RJ45 port (POE). Storage can be done in the cloud or via microSD card (up to a maximum of 256gB).

The camera can be installed outdoors, as it has an IP67 protection rating. It is made of metal and white plastic.

-
+

Technical Specifications of the Dahua SAM-4763 2.8mm Fixed Optic 4Mpx Turret IP Camera and MicroSD



Cámara

Sensor de imagen

CMOS progresivo de 1/3 "y 4 megapíxeles

Píxeles efectivos

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Sistema de escaneo

Progresivo

Velocidad de obturación electrónica

Auto / Manual 1/3 s – 1/100000 s

Min. Iluminación

0.008 Lux @ F1.6

Distancia IR

30 m (98,43 pies)

Control de encendido / apagado IR

Manual de auto

Número de LED IR

2

Pan / Tilt / Rango de rotación

Horizontal: 0 ° –360 °
Vertical: 0 ° –78 °
Rotación: 0 ° –360 °

Lente

Tipo de lente

Fijo

Tipo de montaje

M12

Longitud focal

2,8 mm

Max. Abertura

F1.6

Campo de visión

2.8 mm:
horizontal: 102.0 °
vertical: 55.0 °
diagonal: 121.0 °

Tipo de iris

Apertura fija

Distancia de enfoque cercana

2,8 mm: 0,9 m (2,95 pies)

DORI Distancia

Lente

Detectar

Observar

Reconocer

Identificar

2,8 mm

56 m (183,73 pies)

22,4 m

(73,49 pies)

11,2 m

(36,75 pies)

5,6 m

(18,37 pies)









Evento inteligente

Análisis general de IVS

Intrusión; cable trampa

Vídeo

Compresión de video

H.265; H.264; H.264B; MJPEG

Códec inteligente

si

Velocidad de fotogramas de vídeo

Convencional:

2688 × 1520 (1 fps-20 fps)

2560 × 1440 (1 fps-25/30 fps)

Sub corriente:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Capacidad de transmisión

2 streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726; AAC

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

User/Host

20

Edge Storage

Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 6.6W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal + Plastic

Dimensions

100.9 mm × Φ109.9 mm (3.97" × Φ4.33")

Net Weight

0.39 kg (0.9 lb)

Gross Weight

0.56 kg (1.2 lb)

More Information
Hight 0.150
Length 0.160
Width 0.140
System IP
SERIE Turret
Technology IP
Color White
Tipe Turret
Entorno Exterior
Resolution 4MP ~ 2K
Optics Fixed
Product Brand Dahua
