Data Connector RJ45 UTP CAT-6 Female 209901

SKU
TEL209901
Brands: Televes
€5.05 Tax included
13% Discount for professionals
Televes
Availability: In stock
24/48 Hours
Be the first to review this product

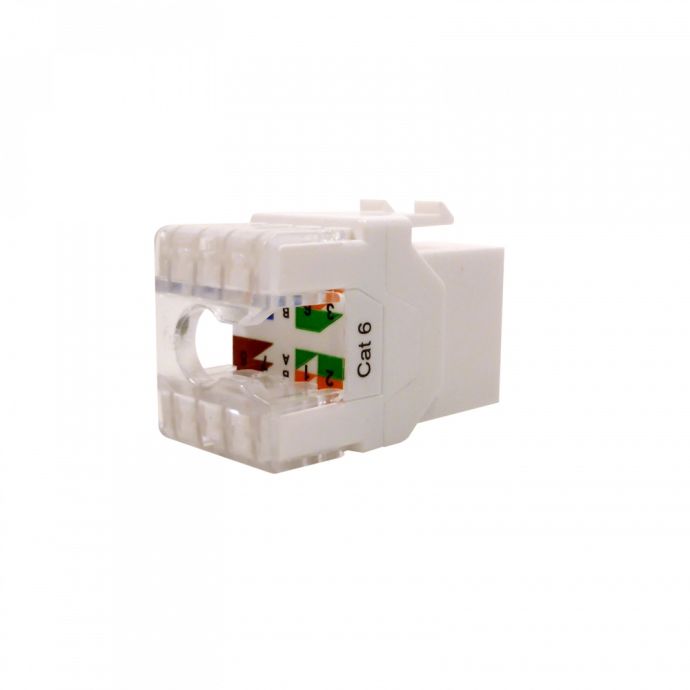

RJ45 UTP CAT-6 Female Data Connector. Ref: TEL209901 from Televes.

Female RJ45 connector for data or telephony, necessary for the ICT both for its installation in the RITI and in the RTR.

Very easy to connect. It can be reopened to remove the cables. They are reusable. The use of the crimping tool Ref. 209401 (professional kit consisting of a crimping tool + female and male RJ45 connectors) is recommended.

Compatible with Cat6 or lower data cable. With front cable entry (at 180º) or at an angle (at 90º).

The connector comes in white plastic with 50 micron gold plated contacts.

-
+

Technical Specifications of the RJ45 UTP CAT-6 Female Data Connector. Ref: TEL209901 from Televes.

Characteristic:

Reusable connector.
CAT6 UTP.
Maximum resistance: 100mΩ.
Attenuation: 5.8dB.
In accordance with the connection standard 568A or 568B. It must be kept the same throughout the entire installation.
Connection table on connector.
Front cable entry (180º) or angled (90º)



Reference 219602 219701 219502   2199   212201   2123   212302 212305 212310 212101 219302 219102 219312 219322
Female
Connectors		 209905 ✔ ✔ ✘ ✔ ✔ ✔ ✔ ✔ ✔ ✘ ✘ ✘ ✘ ✘
209901 ✔ ✔ ✘ ✔ ✔ ✔ ✔ ✔ ✔ ✘ ✘ ✘ ✘ ✘
209921 ✔ ✔ ✘ ✔ ✔ ✔ ✔ ✔ ✔ ✘ ✘ ✘ ✔ ✘
209903 ✔* ✔* ✔ ✔* ✔* ✔* ✔* ✔* ✔* ✔ ✘ ✘ ✘ ✘
209923 ✔* ✔* ✔ ✔* ✔* ✔* ✔* ✔* ✔* ✔ ✔ ✘ ✔* ✔
Male
Connectors		 209902 ✔ ✔ ✘ ✔ ✔ ✔ ✔ ✔ ✔ ✘ ✘ ✘ ✘ ✘
209904 ✔* ✔* ✔ ✔* ✔* ✔* ✔* ✔* ✔* ✔ ✘ ✘ ✘ ✘
209922 ✔* ✔* ✘ ✔* ✔* ✔* ✔* ✔* ✔* ✘ ✘ ✘ ✔ ✘
209924 ✔* ✔* ✔* ✔* ✔* ✔* ✔* ✔* ✔* ✔* ✔ ✘ ✔* ✔

✔ Compatible
✔* Compatible, but there are better choices
✘ Incompatible

More Information
More Information
EAN 8424450162828
Hight 0.100
Length 0.032
Width 0.095
System ICT CAT6
Serie Female Connect.
Color Green
Type Connector
Connection type RJ45 Female
Form factor Straight
Product Brand Televes
