Simplebus System Mounting Diverter

SKU
COM1414
Brands: Comelit
€91.27 Tax included
Availability: In stock
24/48 Hours

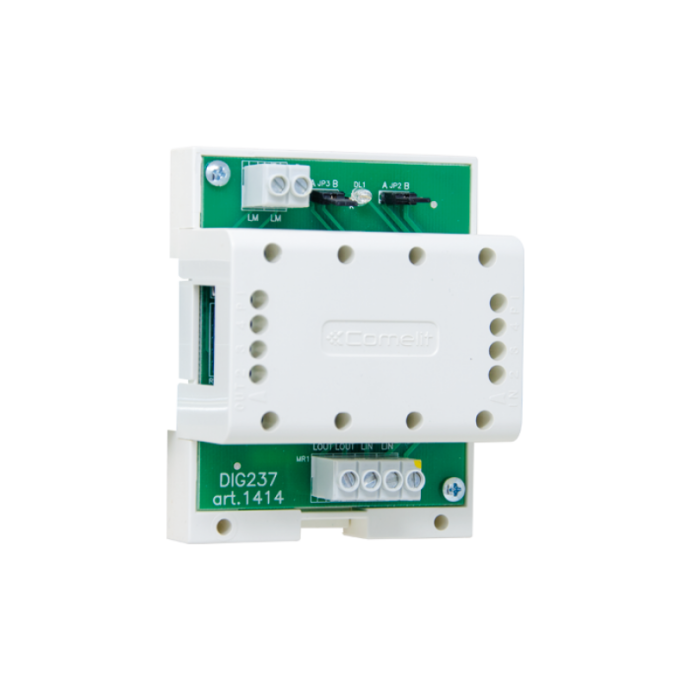

Comelit 1414 2-Wire Simplebus System Mounting Diverter

The Comelit 1414 diverter allows a second upright column to be diverted from the BUS line coming out of the mixer. This device can be used in systems that have a Simplebus 2 connection and the advantage it has is that it does not need extra power due to the power coming from the 2-wire BUS.

One of the characteristics of this system is that it has the function of being able to connect a maximum of 100 users for each mixer, for this we recommend the Comelit 4888C mixer regardless of the number of shunts.

Its installation is DIN (DIN number 4). Its dimensions are 85 mm (AL) x 66 mm (W) x 37 mm (PR).

-
+

Simplebus 2-Wire Mounting Diverter for mounting on DIN 4 rail

What technical specifications does the Comelit 1414 Simplebus Diverter have?

MAIN CHARACTERISTICS

  • Height (mm) 85
  • Width (mm) 66
  • Depth (mm) 37
  • Operating temperature (° C) -5 ÷ 40
  • Operating humidity (% RH max): 25 ÷ 75
  • 25 ÷ 75
  • DIN rail mounting Yes
  • DIN modules (n °) 4
  • Bus line supply voltage

COMPATIBILITY

  • Simplebus 2 Audio / Video System Yes
  • Building Kit audio / video system Yes
More Information
EAN 8023903194357
Hight 0.120
Length 0.080
Width 0.160
System Simplebus (2 threads)
SERIE Spare
Color White
Product Brand Comelit
