Derivative 4 Outputs Connector F 24 dB Televes

4-Way shunt with F connectors (8 dB)

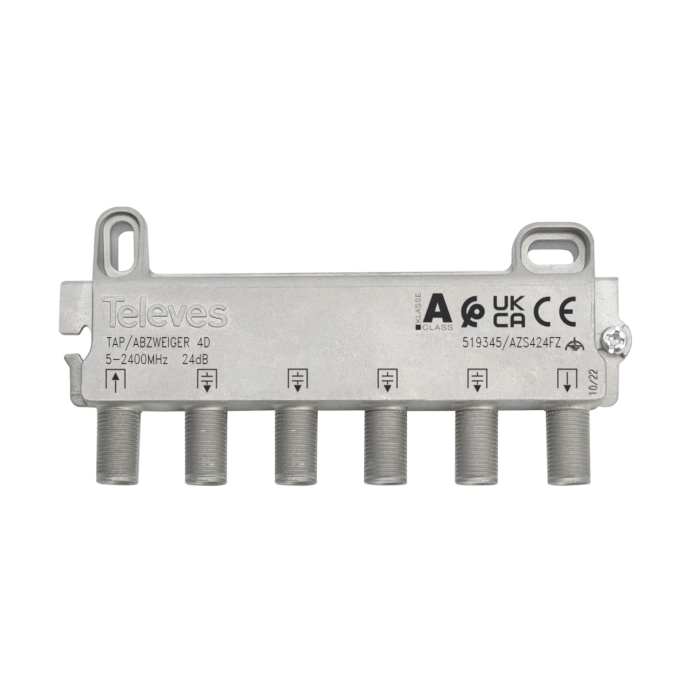

This indoor shunt 519345 from Televes is a passive component with F connectors consisting of 1 input, 4 shunt outputs with 23.2dB attenuation for Terr and 23.5dB for Sat. It is used in SMATV installations.

Due to its technical characteristics, its installation is recommended on floors 6 to 8, since its attenuation losses are 23.2dB. Its installation is very simple, it can be mounted screwed on the wall, on the rack with plates with nuts or on DIN rail;

This shunt works in the frequency range of 5-2400MHz, so it is suitable for both terrestrial and satellite signals. It has a large armor and is made of Zamak.
