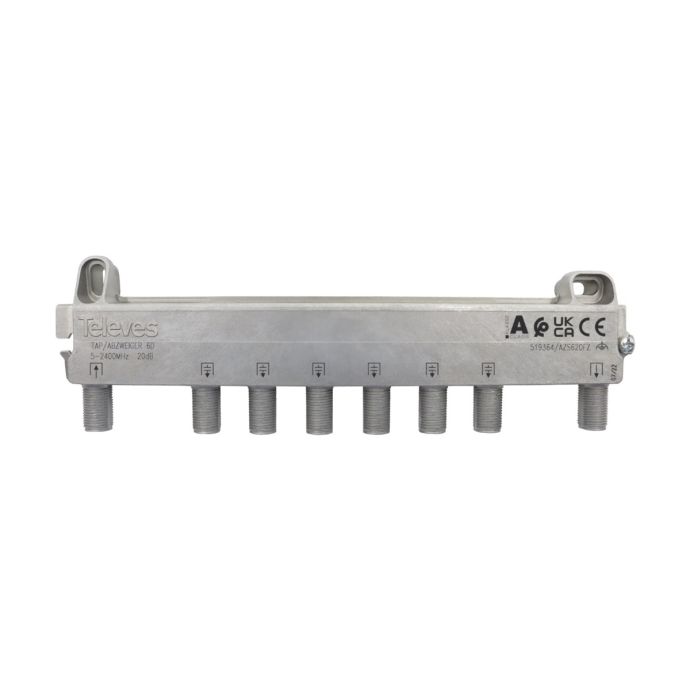

Derivative 6 Outputs Connector F 20 dB Televes
6-way shunt with F Connector and 20dB of Losses
Indoor shunt designed for both terrestrial and satellite signals, works in the 5-2400Mhz band. It has 6 outputs per floor and 20dB of loss of bypass attenuation. Ideal for installation onfloor 3. Improves pass-through losses.
The splitter has F connections to connect the coaxial cable. The splitter has an attenuation 3dB in terrestrial and 4dB in SAT. It can be installed on wall, rack or assembled on DIN rail. Its shielded housing is made of zamak provides a great shielding.
The shunts are used in the signal distribution part of collective TV installations following the guidelines of the ICT regulations. They are installed in the backbone of the building to distribute the signal to each house. As it is supplied with a PAU, it offers an additional input loaded with 75 Omhs for the connection of the second downstream. This user access point for distribution is used in collective ICT-2 installations.
