Derivator Connection F 2 Outputs -20dB

Name: Derivator Connection F 2 Outputs -20dB
Brand: TRIAX
SKU: DERIVADOR220
Price: 4.3 EUR
Availability: InStock

SKU

DERIVADOR220

Brands: TRIAX

€4.30 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

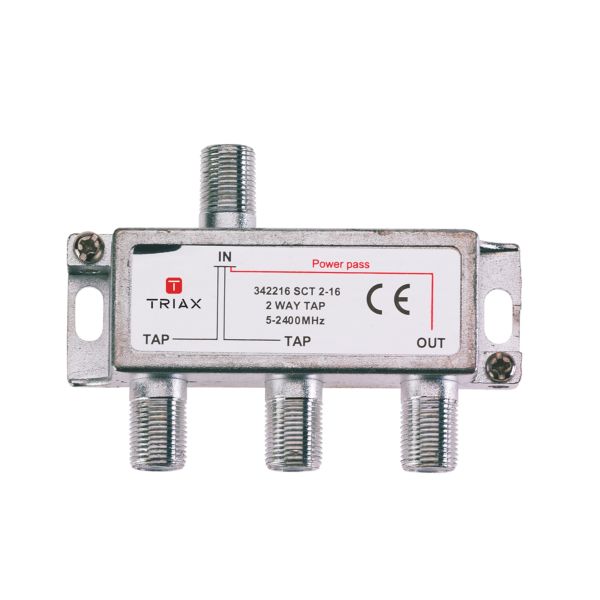

Derivator F of 2 Outputs -20dB for DTT and SAT

Economic shunt with F connection of 1 input, 1 step output and 2 distribution outputs with up to 20dB of losses, suitable for the entire 5-2400 MHz frequency band. This equipment supports DC current flow between plants.

Its high losses make it ideal for installation in intermediate plants and near the head, its attenuation prevents saturation of the amplified signal.

The shunt's brand may vary based on availability.

Details

Derivator of 2 outputs type F and 20dB of attenuation for BI / BII / BIII / DAB / FM / VHF / UHF / FI signals.

What are the main characteristics of the 2-output and -20 dB shunt?

F type connectors
Frequency band: 5-2400 MHz
Entries: 1
Step outputs: 1
Bypass outputs: 2
20dB of derivation losses
Supports DC current passage (only between plants)
Indoor installation
Top Brand Derivator

More Information

More Information
EAN	8401322000013
Hight	0.090
Length	0.020
Width	0.050
DTT System	DTT & SAT Distribution
MANUFACTURER SERIES DTT	F-connector
Color	Silver
TV-SAT Distribution Equipment	Diverter
Entorno	Interior
TV-SAT Distribution Connection	F
Input signal	DAB, FI, FM, UHF, VHF
Insertion Loss (dB)	20
Product Brand	TRIAX
