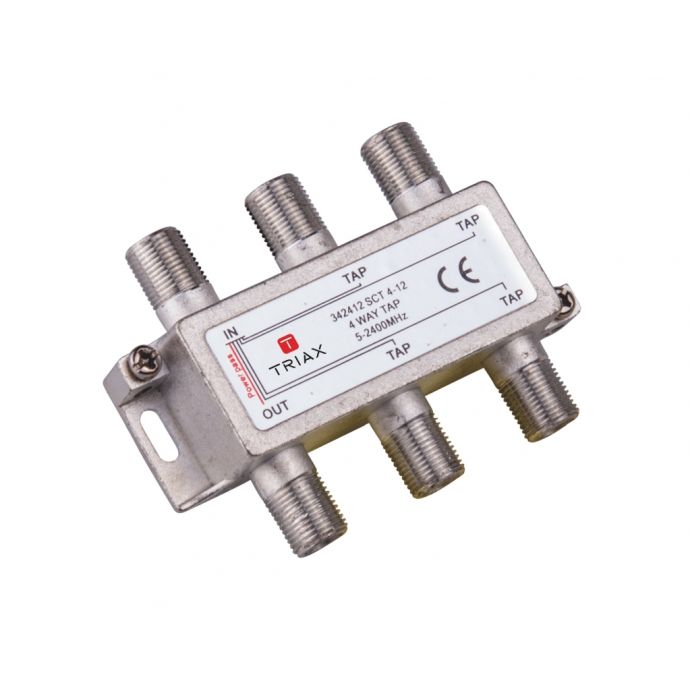

Derivator Connection F 4 Outputs -12dB

SKU
DERIVADOR412
Brands: TRIAX
€5.40 Tax included
Availability: In stock
24/48 Hours

4 Output Derivator and -12dB for DTT and SAT

Economical interior shunt with F connectors of 1 input, 1 output with DC current passage and 4 bypass outputs with 12dB attenuation for terrestrial and satellite. Passive distribution equipment for the entire frequency band 5-2400 MHz.

To be a 4-way shunt, its losses are very low, so it is recommended to install in the first floors of an ICT or, failing that, at those intersections furthest from the amplifier.

The shunt's brand may vary based on availability.

-
+

4-output shunt with F connectors for the entire 5-2400 MHz frequency band (BI / BII / BIII / FM / DAB / VHF / UHF / FI).

What are the main characteristics of the 4-output and -12dB shunt?

  • F type connectors
  • Frequency band: 5-2400 MHz
  • Entries: 1
  • Step outputs: 1
  • Bypass outputs: 4
  • 12dB of derivation losses
  • Supports DC current passage (only between plants)
  • Indoor installation
  • Top Brand Derivator
More Information
EAN 8401341200012
Hight 0.070
Length 0.020
Width 0.040
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 12
Product Brand TRIAX
