Digital Multimeter with Temperature Probe

Name: Digital Multimeter with Temperature Probe
Brand: Electro DH
SKU: ED60.105
Price: 11.07 EUR
Availability: InStock

SKU

ED60.105

Brands: Electro DH

€11.07 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

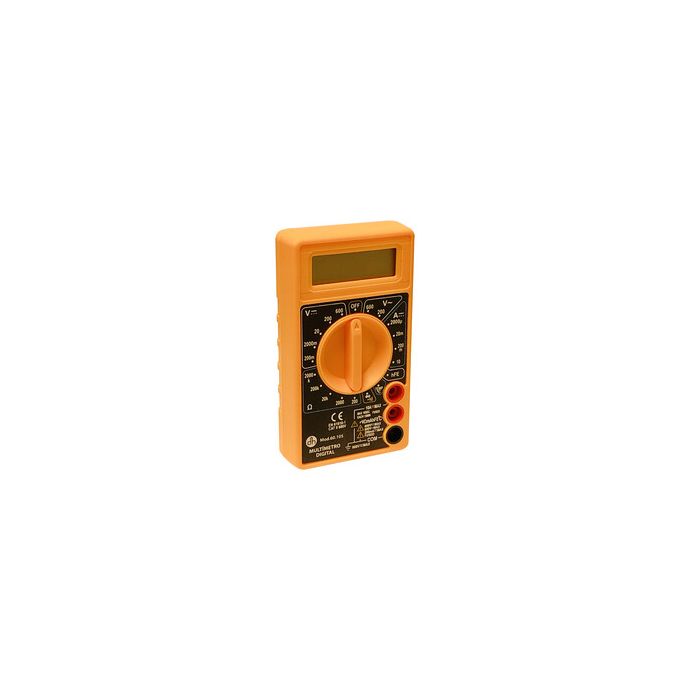

Digital Multimeter 60.105 Electro HD LCD Screen

Thanks to this portable and easy-to-use multimeter, you will be able to measure different quantities in an electrical circuit.

What kind of measurements can you take? You will be able to measure both voltages (volts), currents (amps), resistances (Ohms), temperature (ºC), as well as carry out different types of tests, such as transistors or diodes, admits alternating and direct current.

It also has an acoustic continuity indicator and includes a 700ºC temperature probe, all with measures that make it ergonomic, allowing it to be used with just one hand. Includes a set of tips and cable.

Details

Digital multimeter with temperature probe included LCD screen

The technical specifications of the 60.105 multimeter are:

Transistor test		yes
Dimensions		127×70×24 mm
DC voltage measurement	reading scale	200 mV, 2 V, 20 V, 200 V, 1000 V
DC voltage measurement	precision	±0.5%
AC voltage measurement	reading scale	200 V, 750 V
AC voltage measurement	precision	±1.2%
DC intensity measurement	reading scale	2000 μA, 20 mA, 200 mA, 10 A
	precision	±1%
	overload protection	fusible 200 mA
Resistance measurement	reading scale	200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ
Resistance measurement	precision	±0.8%
Temperature measurement reading scale (with temperature probe)		digital multimeter
Presentation		box
Acoustic indication of continuity		yes
Screen	type	LCD
Screen	nº digits	3½
Diode test		yes
