Distributor with 8 TDT Outputs with F 13dB Connector from Televes

SKU
TEL519608
Brands: Televes
€10.88 Tax included
Availability: In stock
24/48 Hours

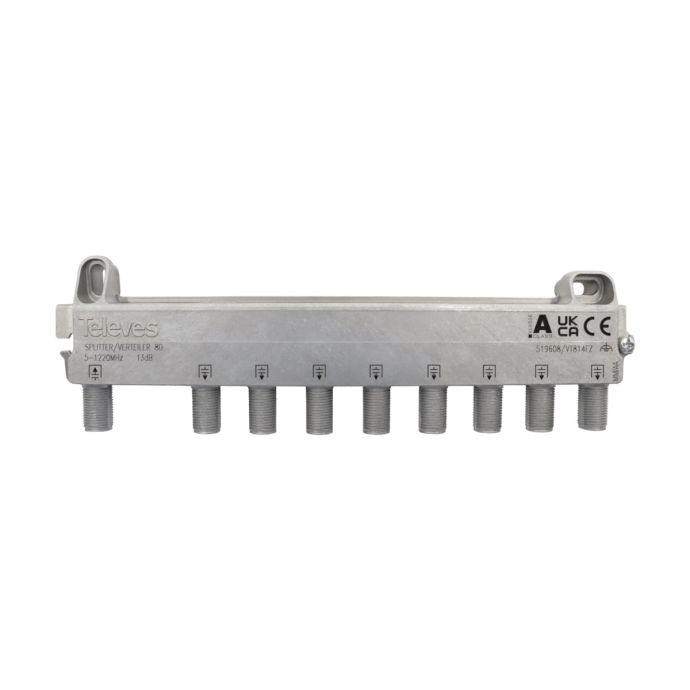

Televes F Connector 8-Output DTT Distributor

The distributor is a small 8-output distributor with an F connection that allows it to work in the frequency range from 5 to 1200 MHz.

This distributor has good performance at high frequencies, with low attenuations and high shielding efficiencies. Improves throughput losses and provides good shielding.

Includes grounding screw. Great mounting flexibility since it can be installed screwed to the wall, on rack plates or on a DIN rail (in the latter case, with adapter 519901).

Its connection is very simple since the 10º inclination angle it has makes it easier to screw in the F connectors. In addition, it allows the wiring to pass through its rear part.

This range of distributors can be chained together, through the ground screw itself, so that we will only use a single grounding cable.

-
+

Technical Specifications of the Televes F Connector 8 Output DTT Distributor

FREQUENCY MARGIN

MHz

5 ... 1200

NUMBER OF OUTPUTS



8

STEP LOSSES

dB

13

REJECTION BETWEEN OUTPUTS

dB

> 20



CONNECTORS



"F" female

More Information
Hight 0.120
Length 0.020
Width 0.030
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
Color Gray
TV-SAT Distribution Equipment Distributor
Entorno Interior
TV-SAT Distribution Connection F
Outputs 8
Input signal UHF
Insertion Loss (dB) 13
Product Brand Televes
Write Your Own Review
You're reviewing:Distributor with 8 TDT Outputs with F 13dB Connector from Televes
Your Rating
File Label Size Download
pdf Ficha Técncia Repartidor de 8 Salidas TDT con Conector F 13dB de Televes 115.2 KB Download
