Diverter 8 Outputs Connector F 20 dB Televes

SKU
TEL519384
Brands: Televes
€10.60 Tax included
Availability: On request
1 to 7 days

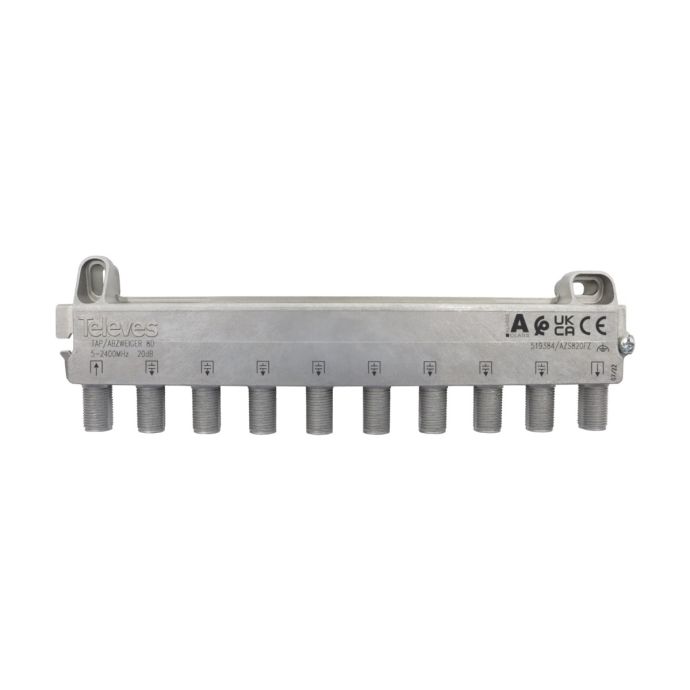

Televes 5-2400MHz 8 Outputs 20dB shunt (floor3)

Indoor shunt designed for both terrestrial and satellite signals, works in the 5-2400Mhz band. It has 8 outputs per floor and 20dB of shunt attenuation losses.

The shunt has F connections to connect the coaxial cable. This Televes shunt is a very reliable high quality solution, manufactured with the latest generation elements. It has a great shielding thanks to its chassis made of Zamak.

Its mounting is very flexible, we can install it screwed on the wall, on rack plates with nuts on its connectors or on standard DIN rail. It includes grounding screw and bidirectional DC feedthrough between the input and output feedthrough.

These shunts can be chained together through the grounding screw.

The shunts are used in the signal distribution part of collective TV installations following the guidelines of the ICT regulations. They are installed in the building's backbone to distribute the signal to each dwelling.

-
+

Technical Specifications of the 5-2400MHz Diverter 8 Outputs 20dB (floor 3) from Televes

Frequency range MHz 5 ... 2400
Number of derivations   8
Plants   3
Tickets/Bands
TERR SAT
Step losses dB
4,5 5
Bypass losses dB
20 20
Rejection between derivation dB
> 20 > 20
Connectors   "F" hembra
Max voltage Vdc 24
Max current mA 350
DC Step   Entr.↔Sal.
More Information
EAN 8424450268025
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Outputs 8
Input signal FI, FM, UHF, VHF
Insertion Loss (dB) 20
Current bypass Yes
Product Brand Televes
