DTT-SAT F 8 Way Splitter 14dB DC Pass Engel

SKU
ENGMP7622
Brands: Engel Axil
€7.76 Tax included
Engel Axil
Availability: In stock
24/48 Hours

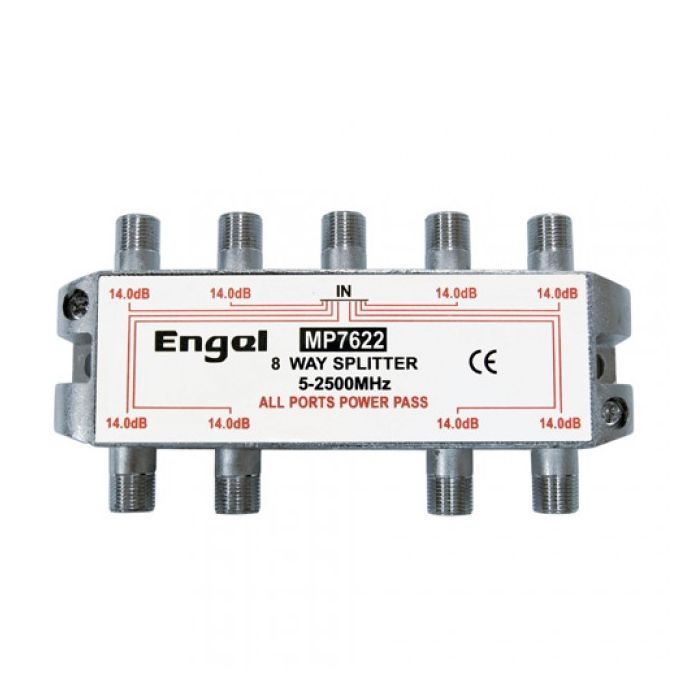

Splitter 5-2400MHz of 8 Outputs type F Engel MP7622

Terretre and Satellite TV (5-2400 MHz) splitter with 8 outputs, 13.2dB of attenuation and DC current pass from all outputs to power the LNB (max. 300mA).

Passive TV-SAT distribution equipment, with easy-to-mount threaded F-type connection. High shielding, low attenuation and flatness of band response.



Standard distributor of 8 outputs for TV-SAT (5-2400 MHz) with DC pass-through

What technical specifications does the Engel MP7622 Splitter have?

  • Freq Band (Mhz): 5-2400
  • No. outputs: 8
  • 47 MHz Loss: 13.2 ± 0.7 dB
  • 900 MHz Loss: 13.2 ± 0.7 dB
  • 2150 MHz Loss: 15 ± 0.9 dB
  • RF/IF decoupling: >16 dB
  • Dimensions: 120x60x25 mm
More Information
EAN8413173011520
Hight0.130
Length0.030
Width0.070
DTT SystemDTT & SAT Distribution
SERIES DTTF-connector
ColorWhite
TV-SAT Distribution EquipmentDistributor
EntornoInterior
TV-SAT Distribution ConnectionF
Outputs8
Input signalDAB, FI, FM, UHF, VHF
Insertion Loss (dB)14
Current bypassYes
Product BrandEngel Axil
