Shunt 4 CATV Outputs F Connector 8dB Televes

Name: Shunt 4 CATV Outputs F Connector 8dB Televes
Brand: Televes
SKU: TEL457103
Price: 7.07 EUR
Availability: InStock

SKU

TEL457103

Brands: Televes

€7.07 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

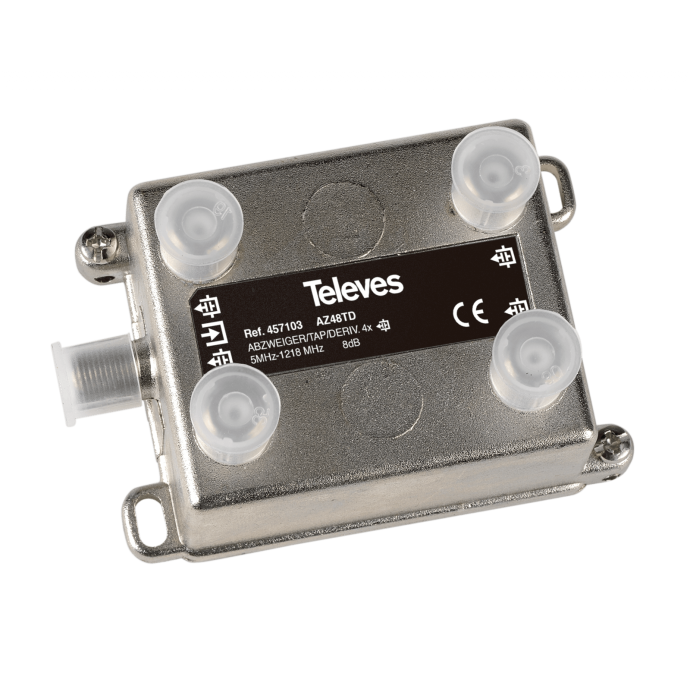

DTT tap 5-1220MHz 4D 8dB Docsis 3.1 Televes 457103

Tap with 4 front F-type outputs with 8dB of attenuation, without pass output.Tap for terrestrial signals 5-1220MHz, compatible with Docsis 3.1 coaxial cable data technology.

Due to the lack of pass output and the low insertion losses it has, it is designed to be installed on the first floor of an ICT home. It is for indoor installation.

This tap is not suitable for satellite signal distribution.

Details

DTT tap (5-1218 MHz) with 4 F outputs with 8dB loss, compatible with Docsis 3.1

What are the main characteristics of the 4D Televes 457103 tap?

F connectors
Outstanding shielding
Grounding screw provided
Does not have any pass outputs.

What technical specifications does the 4D Televes 457103 tap have?

Frequency range	MHz	5-1218
Number of outputs		4
Floors		1
Through loss	dB	-
Tap loss		8
Rejection between taps		>20
DC Pass (max.)	A	-

More Information

More Information
EAN	8424450193044
Hight	0.090
Length	0.040
Width	0.050
DTT System	DTT & SAT Distribution
MANUFACTURER SERIES DTT	F-connector
Color	Silver
TV-SAT Distribution Equipment	Diverter
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	4
Input signal	DAB, FM, UHF, VHF
Insertion Loss (dB)	8
Current bypass	No
Product Brand	Televes
