DTT-UHF LTE 4G/5G Outdoor 20dB Cyclon Antenna by Nimo

SKU
NIMANT503
Brands: NIMO
€34.17 Tax included
Availability: In stock
24/48 Hours

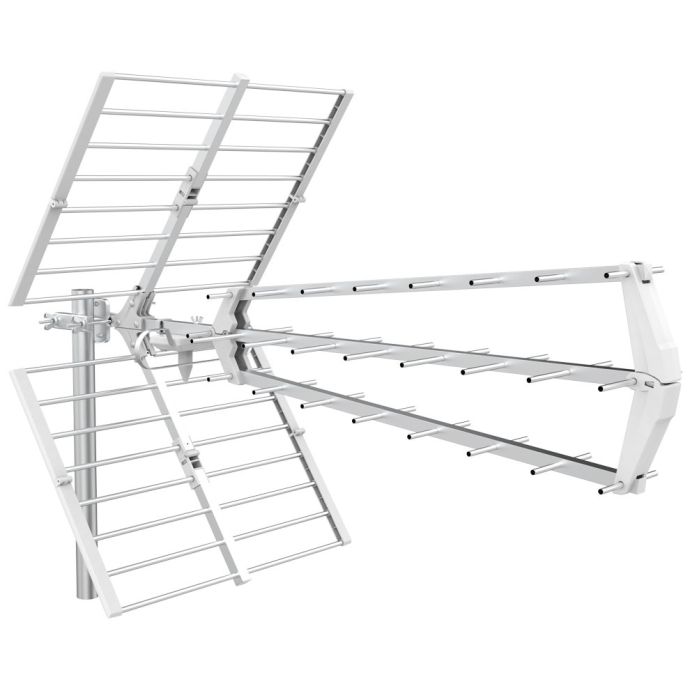

Nimo DTT LTE 4G/5G Cyclon 20dB Outdoor antenna

Introducing these new NImo antennas with built-in LTE/5G filter . This Cyclon antenna offers a total gain of 20 dB. It is considered a high gain antenna, suitable for areas with good TV signal.

The antenna operates in the frequency band of 470-698MHz. This antenna has very compact reflectors and structure, it is foldable to transport it in a more comfortable way.

This type of antenna is ideal for installation on balconies, thanks to its low visual impact. It is necessary to orient the antenna, so it is not a solution for caravans that are constantly moving or boats.

This antenna is made of lightweight materials, ABS plastic and aluminum, is stainless, with solid structure and UV protection. Quick and easy mounting without tools, includes clamp for attachment to the mast.

-
+

Technical Specifications of the Nimo Cyclon 20dB Outdoor 4G/5G LTE DTT Antenna

Antenna TV output
Output connection Connector type F
EMB 1/6
Filter 5G / LTE
Frecuency UHF 470-698Mhz
Gain 10-20 dB
Impedance 75 Ohm
Weight 1450g.
Size 750x1030x520mm.
More Information
EAN 8445577008042
Hight 0.200
Length 1.000
Width 0.100
DTT System DTT Reception
MANUFACTURER SERIES DTT Pasive
Type DTT 4G, DTT 5G, FM
Entorno Exterior
Orientation Directive
Gain High
Dipole Passive
LTE compatible Yes
Supply required No
Product Brand NIMO
