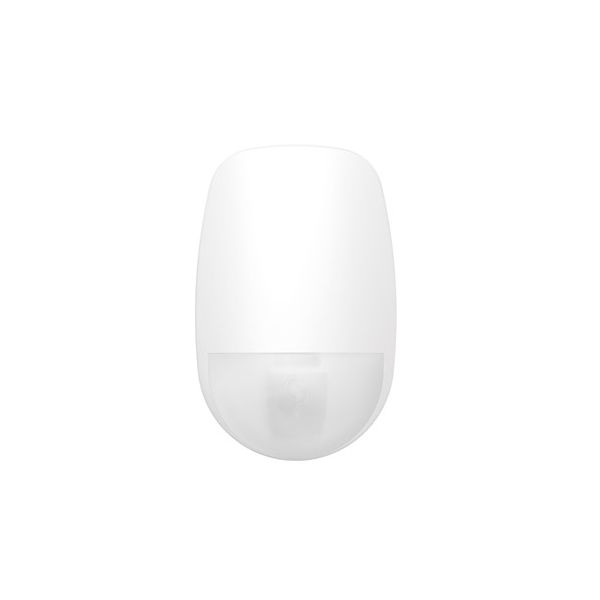

Dual PIR Detector 24G Indoor Wireless Tri-X Bidirectional 12m Hikvision

SKU
DS-PDD12P-EG2-WE
Brands: Hikvision
€71.01 Tax included
Availability: In stock
24/48 Hours

Hikvision wireless detector dual technology Via Radio 24G DS-PDD12P-EG2-WE

This detector is dual PIR/microwave 24G, to avoid wall penetration. It is indoor and wireless. It connects to the central panel very easily remotely through the APP.

Belonging to the AXPRO series with 868Mhz bidirectional Tri-X technology. It includes 3D optics that provide total coverage without a dead angle of up to 12 meters, with an angle of 85.9º.

The detector allows it to work even with pets at home, thanks to its immunity function to pets up to 30Kg. It runs on just 2 CR123A batteries (not included), which can last up to 5 years.

This detector becomes a highly reliable device, thanks to its protection against frequency hopping interference. Detects walls and windows in its perimeter protection range.

-
+

Technical specifications Hikvision wireless detector dual technology Via Radio 24G DS-PDD12P-EG2-WE

Detection methods: Passive Infrared and Microwave

12 meter detection range

85.9 ° detection angle

52 detection zones

Detection speed of 0.3 ~ 2m / s

Three levels of sensitivity

Immunity to pets up to 30 kg

6500 lux white light filter

24.15 ~ 24.25Ghz Microwave Frequency

Digital temperature compensation

Zero zone protection

Digital processing

Sealed optics

Front and rear tamper protection

Ambient temperature indicator

Signal strength indicator

Tri-X wireless transmission technology

Two-way radio transmission

Transmission frequency 868MHz

AES-128 encryption

1.6 km transmission range in open field

Supports frequency hopping

Enrollment method by Power, Remote ID and QR code

Powered by 2 3V CR123A batteries not included

Battery life of up to 5 years (20 activations per day)

Storage temperature -20 ° C ~ + 60 ° C

-10 ° C ~ + 55 ° C operating temperature

10% ~ 90% relative humidity

Indoor installation environment

Installation height of 1.8 ~ 2.4 meters

Ceiling mount bracket (optional): (DS-PDB-IN-Ceilingbracket)

Wall mount bracket (optional): (DS-PDB-IN-Wallbracket)

Dimensions: 65.5 (W) x 103 (H) x 48.5mm

Weight: 141g

More Information
EAN 6941264063131
Hight 0.100
Length 0.080
Width 0.050
System Tri-X
SERIE PIR
Color White
Automation PIR Presence Sensor
Product Brand Hikvision
