Duox Connect Kit for 10 Homes with Telephones

Technical Specifications of the Duox Connect Kit for 10 Homes with Electronic Telephone

The Fermax 10 housing kit has everything you need to carry out our electronic door entry installation in a 10 dwelling building.

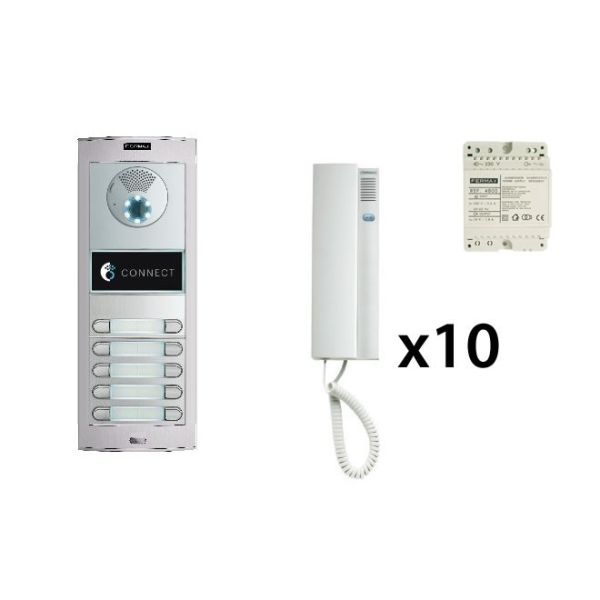

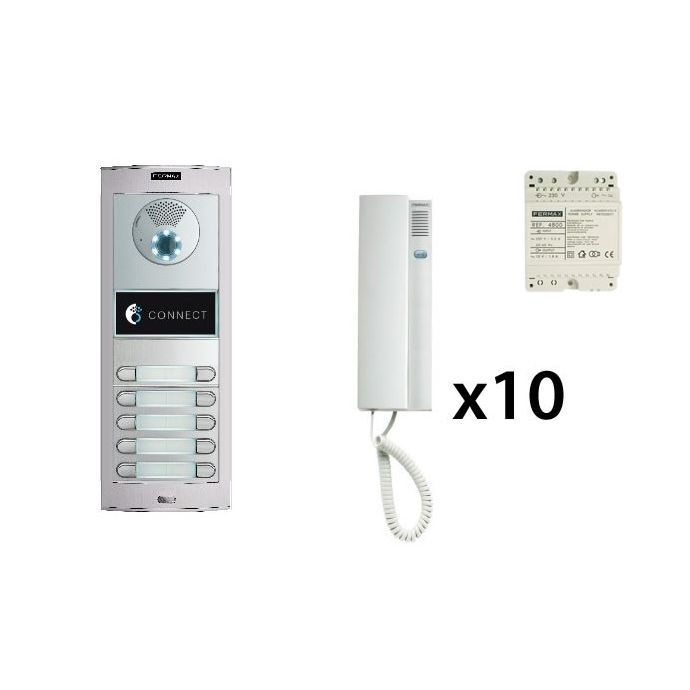

What does this Fermax kit include?

• Street sign with ten pushbuttons 73910.
• 10 electronic telephones 34440.
• 4800 Feeder.
• Feeder + Filter 4825.
• 2 Duox line adapters 3255.

What technical features does the 34440 phone have?

• Auto-start: This function is possible with the board of its own block, if the board is at rest, programmed as "0" and there is some talk channel available.
• Screwed on surface.
• Power: 18 Vdc
• Door release button and concierge call.
• Selectable ring tones.
• Private communication. Secret of conversation.
• Consumption:
• At rest: 15 mA.
• Active without audio: 112 mA.
• Communicating tone: 117 mA.
• Active audio: 125 mA
• Tone monitoring: 271 mA

What is a Duox line adapter used for?

At DUOX installations, a line adapter device must be installed. Its function is the adaptation of the transmission line. It has a bridge to make different adaptations depending on the type of installation.

Small size allows installation in electrical registers. They can be bolted directly to the wall.
