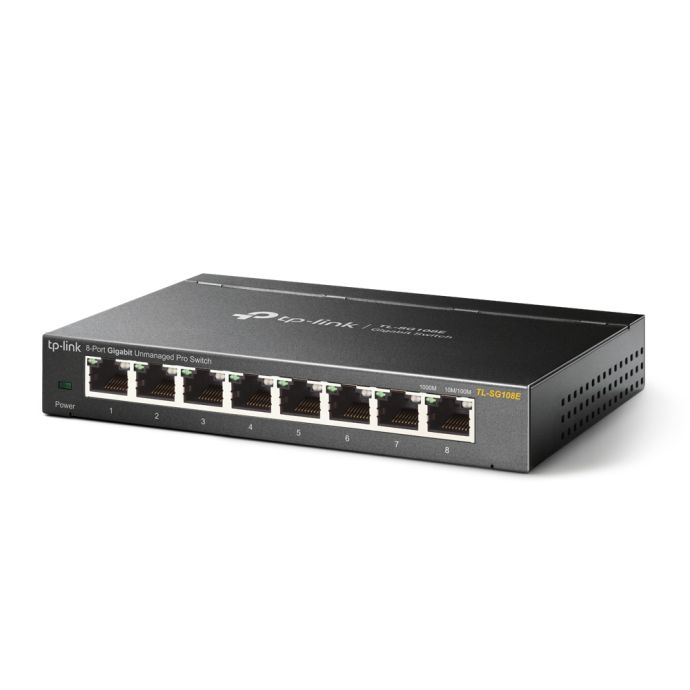

Easy Smart Switch 8-port Gigabit TL-SG108E

SKU
TL-SG108E
Brands: Tplink
€36.54 Tax included
Availability: On request
1 to 7 days

Switch 8 ports RJ45 10/100 / 1000Mbps TP-LINK

The TL-SG108E Non-Manageable Switch Pro is an ideal upgrade for non-manageable switches, suitable for home or small business networks.

The plug-and-play design makes deployment easy without the need for a technician, while its robust metal case provides better protection for its components.

Equipped with intelligent management features such as QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple networks and high demand environments.

-
+

The auto negotiation on each port detects the link speed of the connected device and intelligently adjusts the configuration for optimal compatibility and performance.

What technical characteristics does the TL-SG108E switch have?

  • 8 ports of 10/100 / 1000Mbps RJ45
  • Plug and play, without the need to configure
  • High quality and professional looking durable metal housing
  • Smart management via web interface and / or with downloadable utility
  • Green technology reduces power consumption

What technical specifications does the TL-SG108E switch have?

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 ports 10/100 / 1000Mbps RJ45
AUTO Negotiation / AUTO MDI / MDIX
Network Media 10BASE-T: UTP cable category 3, 4, 5 (maximum of 100m)
EIA / TIA-568 100Ω STP (maximum of 100m)
100BASE-TX: UTP cable category 5, 5e (maximum of 100m)
EIA / TIA-568 100Ω STP (maximum of 100m)
1000BASE-T: UTP cable category 5, 5e, 6 or higher (maximum of 100m)
EIA / TIA-568 100Ω STP (maximum of 100m)
Number of Fans Without fan
Power supply External power adapter (Output: 9VDC / 0.6A)
Dimensions 158 * 101 * 25 mm
Maximum Power Consumption 3.55W (220V / 50Hz)
Max Heat Dissipation 12.12BTU / h
PERFORMANCE
Switching Capability 16Gbps
Packet Forwarding Rate 11.9Mpps
Address Table MAC 4K
Memory of the Packet Buffer 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of service Supports port-based and 802.1p priority
Supports 4 priority queues
Traffic limiter
Storm Control
Characteristics L2 IGMP Snooping V1 / V2 / V3
Static port aggregation
Port Mirroring
Cable Diagnostics
Prevention of loops
VLAN Supports up to 32 VLANs simultaneously (out of 4,000 VLANs)
MTU VLAN / Port / Label
Transmission Method Store-And-Forward
OTHERS
Certifications FCC, CE, RoHS
Package content TL-SG108E
Power cable
Installation guide
Rubber bases
System Requirements Microsoft® Windows® XP, Vista ™ Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Environmental factors Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
More Information
EAN 6935364021856
Hight 0.190
Length 0.100
Width 0.130
RED - System NOT POE
RED - SERIE 8 Ports
Color Black
Network Equipment Switch
Ports 8
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand Tplink
