EK Modular Power Supply 5Vdc- 20A

SKU
EK082009
Brands: EKSELANS
€406.32 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

Power Supply with EK 5Vdc Programming Module

This power supply is for the EK twin 2-input transmodulator 082327. It includes a programming and remote control module. This power supply can be mounted on a wall chassis(CH3 TR) or on a 19" rack.

The switching power supply has an output voltage of 5Vdc at a maximum current of 24A (maximum power of 120W). It is of modular type. It incorporates fuses to protect against electrical overload.

It allows programming and remote control of the head-end in a centralised manner through CM Management programming software.

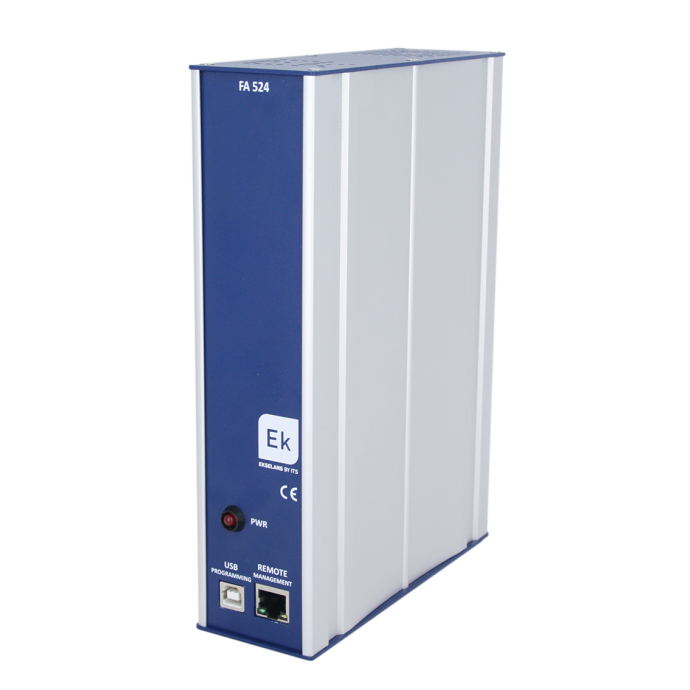

On the front we can find a status indication LED, a programming port with USB connector via CM Management, a remote control/programming port with RJ45 connector via CM Management and CM Key activation. On the back, we can see the power supply plug and a data bus and power supply port

-
+

EK Power Supply with 5Vdc Programming Module Technical Specification

REFERENCE   FA 524
Code   080009
Input voltage Vac 90-253
Input frequency Hz 50-60
Output voltage Vdc 5
Maximum current A 24
Maximum power W 120
Type   Modular
Operating temperature ºC 0-45
Programming port   USB connector
Remote control port / Programming   RJ45 connector
REFERENCE CH3 TR CHM TR CHR TR
Code 080008 080005 080006
Description CM series 3-module wall chassis CM series 6-module wall chassis CM series 6-module wall chassis
Number of modules 2 + Source 5 + Source 5 + Source
Mounting Wall Rack 19"
Height in rack units - - 6 U
Measurements 187x265x26
mm
427x265x26
mm
475x265x200
mm
Material Galvanized steel
More Information
EAN 8436548992323
Hight 0.000
Length 0.000
Width 0.000
System SAT SAT Supply
MANUFACTURER SERIE SAT CM
Length 0.5 meters
Color Blue
Product Brand EKSELANS
