REFERENCE AX 3000
Code 331019
802.11n
4 spatial streams:
- Radio 1 - 2.4 GHz: 2x2 MIMO, two spatial streams
- Radio 2 - 5 GHz: 2x2 MIMO, two spatial streams
Channels:
- Radio 1 - 2.4 GHz: 20 MHz and 40 MHz
- Radio 2 - 5 GHz: 20 MHz and 40 MHz
Maximum combined data rate: 600 Mbps
- Radio 1 - 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)
- Radio 2 - 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS31)
Radio Technologies: Orthogonal Frequency Division Multiplexing (OFDM)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM
Packet aggregation:
- Aggregated MAC Protocol Data Unit (A-MPDU).
- Aggregated MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS) / Cyclic Delay Diversity/Cyclic Shift (CDD/CSD) / Maximum Ratio Combining (MRC) / Space-Time Block Coding (STBC) / Space-Time Block Coding (STBC)
Space-Time Block Coding (STBC) / Low Density Parity Check (LDPC) / Transmit Beamforming (TxBF)
802.11ac
Two spatial streams:
- Radio 2 - 5 GHz: 2x2 MIMO, two spatial streams.
Channels:
- 2 - 5 GHz Radio: 20 MHz, 40 MHz, 80 MHz and 160 MHz
Maximum combined data rate: 1.733 Gbps
- Radio 2 - 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9)
Radio Technologies: Orthogonal Frequency Division Multiplexing (OFDM)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Translated with www.DeepL.com/Translator (free version)
Packet aggregation:
- Aggregated MAC Protocol Data Unit (A-MPDU)
- Aggregated MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS) / Delay Diversity/Cyclic Shift Diversity (CDD/CSD) / Maximum Ratio Combining (MRC) / Space-Time Block Coding (STBC)/Space-Time Block Coding (STBC)/Maximum Ratio Combining (MRC)/Space-Time Block Coding (STBC)
Space-Time Block Coding (STBC) / Low Density Parity Check (LDPC) / Transmit Beamforming (TxBF)
802.11ax
Four spatial streams:
- Radio 1 - 2.4 GHz: MU-MIMO uplink/downlink 2x2, two spatial streams.
- Radio 2 - 5 GHz: MU-MIMO uplink/downlink 2x2, two spatial streams.
Channels:
- Radio 1 - 2.4 GHz: 20 MHz and 40 MHz
- Radio 2 - 5 GHz: 20 MHz, 40 MHz, 80 MHz and 160 MHz
Maximum combined data rate: 2.976 Gbps:
- Radio 1 - 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11)
- Radio 2 - 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11)
Radio technologies: Orthogonal Frequency Division Multiple Access uplink/downlink (OFDMA)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Packet aggregation:
- Aggregated MAC Protocol Data Unit (A-MPDU).
- Aggregated MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS) / Cyclic Delay Diversity/Cyclic Shift (CDD/CSD) / Maximum Ratio Combining (MRC) / Space-Time Block Coding (STBBC)
Space-Time Block Coding (STBC) / Low Density Parity Check (LDPC) / Transmit Beamforming (TxBF) / WPA3
Antennas
Wi-Fi:
Translated with www.DeepL.com/Translator (free version)
- 2.4 GHz: two integrated smart omnidirectional antennas, with a maximum gain per antenna of 3 dBi.
- 5 GHz: two integrated smart omnidirectional antennas, with a maximum gain per antenna of 3 dBi.
Bluetooth:
- One integrated omnidirectional antenna, with a maximum gain per antenna of 2.4 dBi.
Ports
1 x 10/100/1000Base-T RJ45 Ethernet port with auto-negotiation
1 x 2.5GE SFP combo port (10/100/1000Base-T electrical port), compatible with 1GE SFP
1 x RJ45 console port
1 x Bluetooth 5.1
LED Status
1 x Multi-color system status LED
- AP power-on status
- Software initialization status and update status
- Uplink service interface status
- Online wireless user status
- CAPWAP tunnel timeout
- AP specific location
Button
1 x Reset button
- Press the button for less than 2 seconds to reset the device.
- Press the button for more than 5 seconds to restore the device to factory settings.
Dimensions
(W x D x H)

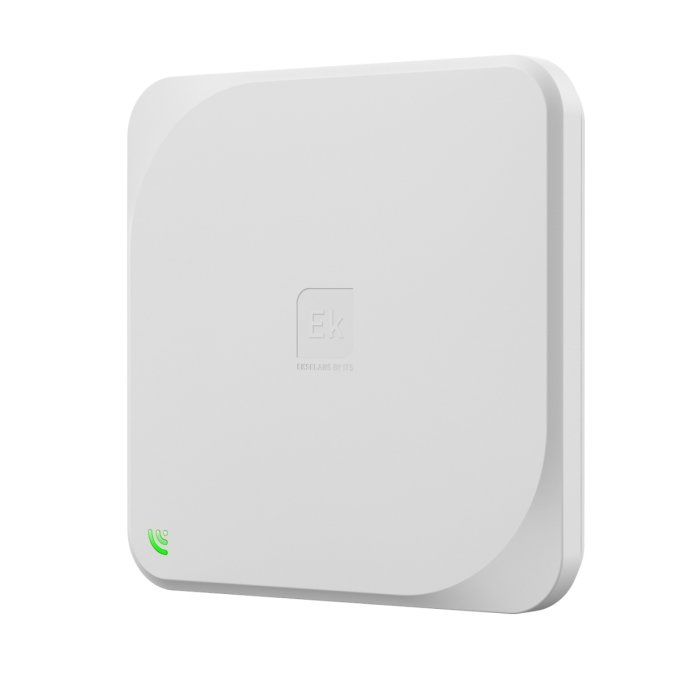

Main product: 220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.)
Packaging: 507 mm x 319 mm x 278 mm (19.96 in. x 12.56 in. x 10.94 in.)
