Engenius WiFi 6 Access Point 1774 Mbps Outdoor Wall 1 Port 2.5Gigabit PoE

SKU
ENGEWS850-FIT
Brands: EnGenius
€335.53 Tax included
Free shipping
(Iberian Peninsula)
EnGenius
Availability: On request
1 to 7 days

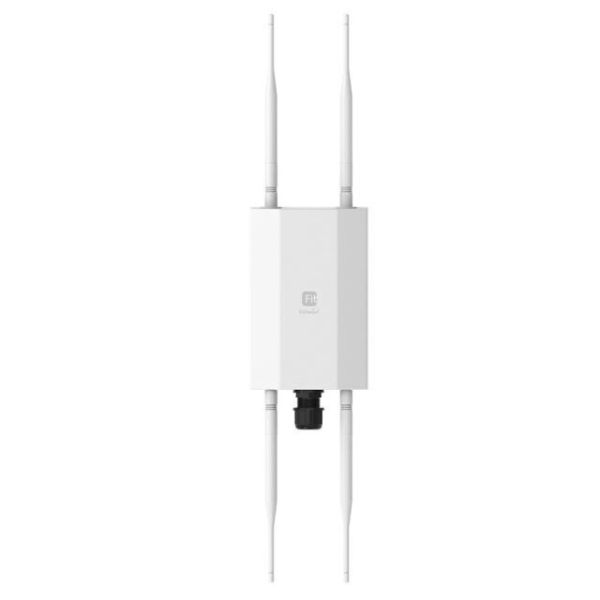

Engenius 1-Port 2.5Gb Outdoor WiFi6 Access Point

If you are looking for a powerful and durable solution to improve wireless connectivity outdoors, the Engnius EWS850-FIT is the ideal choice. This WiFi6 access point is designed to offer superior speeds, lower latency and greater efficiency in data transmission, even in the most demanding environments. Thanks to its IP67-certified housing, it can withstand adverse weather conditions such as rain, dust and extreme temperatures, making it the perfect solution for businesses, mid-sized offices, parks, campuses and industrial areas.

It works in dual band, offering a combined speed of up to 1774Mbps (574Mbps in 2.4GHz and 1200Mbps in 5GHz), allowing simultaneous connection of multiple devices without losing performance. Its 2x2 MU-MIMO antenna optimizes the distribution of network traffic, improving the user experience in video calls, streaming and cloud applications. It includes a 2.5Gbps PoE+ port, facilitating its installation in places where there is no access to nearby power outlets.

The EWS850-FIT is ideal for businesses looking to extend their Wi-Fi coverage without compromising signal quality. It can be managed in the cloud or locally, offering security and flexibility. It can be used in a hotel with outdoor areas, a logistics warehouse or an outdoor event, ensuring reliable and stable connectivity for employees and customers.

Package Contents:

  • Cloud Managed Outdoor Access Point
  • PoE Injector
  • Pole Mount Bracket
  • Wall Mount Screw Kit
  • 2x2.4GHz 5dBi SMA Antennas
  • 2x5GHz 5dBi SMA Antennas
  • Quick Installation Guide

Technical Specifications of the Engenius WiFi 6 1774 Mbps Outdoor Wall Access Point 1 Port 2.5Gigabit PoE

Technical specifications

Estándares
IEEE 802.11b / g / n / ax at 2.4 GHz
IEEE802.11a / n / ac / ax at 5 GHz


Qualcomm® 1.8GHz quad-core ARM Cortex A53s CPUprocessor

Antena
Four (4) 5 dBi concurrent dual omnidirectional antennas
SMA Type

Physical interface
1 Ethernet port 10/100/1000/2500 BASE-T, RJ-45

Indicadores LED
1 x potencia
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Supply Power
over Ethernet: 802.3af/at
Proprietary 48V - 54V
Cumple con IEEE 802.11e
Active Ethernet (PoE) supply

Maximum power consumption
15.9 W

1KVsurge protection

Protección ESD
Contacto: 4KV
Air: 8KV



Wireless and Radio Specifications

Frecuencia de Operacion
Dual concurrent radio 2.4GHz and 5 GHz


AP, mallaModos de operación

Radio de frecuencia
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit power
2,4 GHz: 23 dBm
5 GHz: 25 dBm
La potencia máxima está limitada por el dominio regulatorio

Tx Beamforming (TxBF)
Increased signal reliability and transmission distance.

Radio chains / space stream
2x2: 2

SU-MIMO
Two (2) SU-MIMO spatial streams for 2.4 GHz and two (2) SUMIMO spatial streams for 5 GHz with wireless data rate up to 1774 Mbps to a single 11ax wireless client device using both 2.4GHz and 5GHz radios.

MU-MIMO
Two (2) multiple spatial streams (MU)-MIMO for up to 1200Mbps wireless data rate to transmit to one (1) two streams of MU-MIMO 11ax capable wireless client devices below 5GHz simultaneously

Two (2) Multiple (MU)-MIMO for up to 574Mbps wireless data rate to stream to one (1) two 2.4GHz 11ax MU-MIMO capable wireless client device streams simultaneously.

Velocidades de datos admitidas (Mbps):
802.11ax:
2.4 GHz: 9 a 574 (MCS0 a MCS11, NSS = 1 a 2)
5 GHz: 18 a 1200 (MCS0 a MSC11, NSS = 1 a 2)
802.11b: 1, 2, 5.5, 11
802.11a / g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 a 300 Mbps (MCS0 a MCS15)
802.11ac: 6.5 a 867 Mbps (MCS0 a MCS9, NSS = 1 a 2)

Tecnologías de radio compatibles
802.11ax: Acceso múltiple por división de frecuencia ortogonal (OFDMA)
802.11b: Direct Sequence Spread Spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple Access (OFDM)

802.11ax
supports High Efficiency (HE): HE 20/40/80 MHz
802.11ac supports Very High Throughput (VHT): VHT 20/40/80 MHz
802.11n supports High Throughput (HT): HT 20/40 MHz
802.11n supports Very High Throughput with 2.4 GHz radio: VHT40 MHz (256-QAM) 802.11n/ac/ax Packet Aggregation: A-MPDU, A-SPDU

Modulación compatible
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a / g / n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

More Information
Hight0.040
Length0.190
Width0.100
REDES - SystemWIFI6
REDES - SERIE1800Mbps
ColorWhite
Network EquipmentAccess Point
Ports1
Data SpeedGigabit (10/100/1000Mbps)
PoEYes
Product BrandEnGenius
