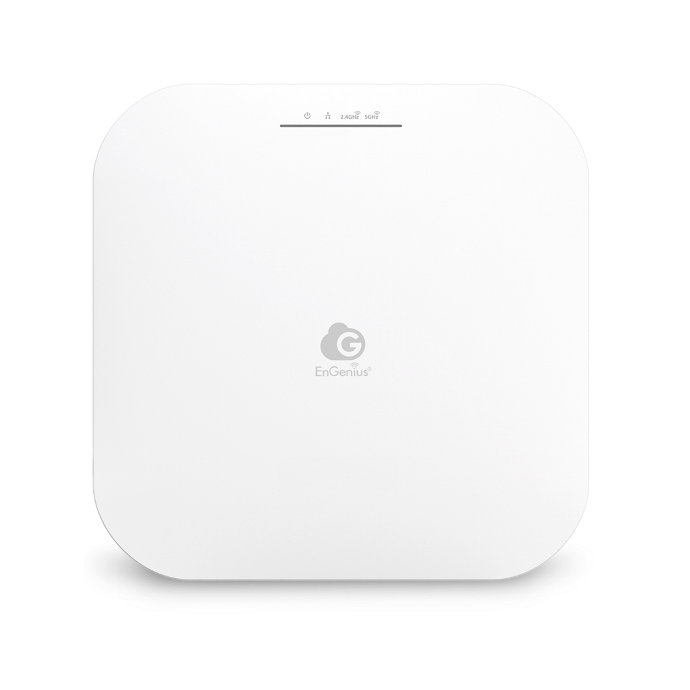

EnGenius ECW212L Standards
802.11a/b/g/n/ac/ax
Antenna
2 x 2.4 GHz: 5 dBi
2 x 5 GHz: 5 dBi
Physical interface
1 x 2.5 GE
DC12V
Reset button
LED indicators
1 x power supply
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power supply
PoE 802.3at
12 V 2 A DC
Maximum power consumption
17 W
Wireless Specifications
Operating Frequency
Concurrent dual radio 2.4 GHz and 5 GHz
Operating Modes
Managed Mode: AP, AP Mesh, Mesh
Standalone: AP, Mesh, WDS AP, WDS BR, WDS STA
Radio Frequency
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit power
Up to 23 dBm at 2.4 GHz
Up to 23 dBm at 5 GHz
(Maximum power is limited by regulatory domain)
Radio chains
4 × 4:4
SU-MIMO capability
Four (4) spatial-streaming single user (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under 2.4 GHz radio.
Four (4) spatial-streaming single user (SU) MIMO for wireless data rate up to 2400 Mbps with HE160 to a 4×4 wireless device under 5 GHz radio.
MU-MIMO capability
Four (4) Multiple (MU)-MIMO spatial streams with wireless data rate up to 2400 Mbps to transmit to four (4) MU-MIMO 11ax capable wireless client device streams below 5 GHz simultaneously.
Four (4) Multiple (MU)-MIMO spatial streams with a wireless data rate of up to 1148 Mbps to transmit to four (4) streams of MU-MIMO 11ax capable wireless client devices below 2.4 GHz simultaneously.
Supported data rates (Mbps):
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5,5, 11
802.11a/ g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 1,733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
Supported data rates
802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5,5, 11
802.11a/ g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported radio technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11a/g/n/ac: Orthogonal frequency division multiplexing (OFDM)
802.11b: Direct Sequence Spread Spectrum (DSSS)
Channelization
802.11ax supports high efficiency (HE) throughput -HE 20/40/80 MHz
802.11ac supports Very High Throughput (VHT) -VHT 20/40/80 MHz
802.11n supports high throughput (HT) -HT 20/40 MHz
802.11n supports high throughput on the 2.4 GHz radio -HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Modulation support
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 16-QAM, 64-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
DFS Certification
FCC/CE/IC
Maximum simultaneous users
128 per radio
Client balancing (Band Steering)
Yes
Automatic channel selection
Yes
Management Functions
Multiple BSSIDs
8 SSIDs in 2.4 GHz and 5 GHz bands
VLAN tagging
Supports SSID to 802.1q VLAN tagging
Cross-band VLAN Cross-band VLAN
Pass-through management
Spanning Tree
Supports 802.1d spanning tree protocol
QoS (Quality of Service)
Standard compliance
IEEE 802.11e WMM
SNMP
v1, v2c, v3
MIB
I/II, private MIB
Fast roaming
802.11r/k
Wireless security
WPA2-PSK
WPA3-PSK
Hide SSID
Wireless STA (client) connected list
Client Isolation
Client Access Control
Interface
IPv4, IPv6
Environmental and Physical
Temperature Range
Operating: 0 ºC~40 ºC
Storage: -40 ºC~80 ºC
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Device ECW210L
Length: 205 mm
Width: 205 mm
Height: 33 mm
Package Contents
1 - Indoor Access Point ECW212L
1 - Ceiling mount base (9/16” Trail)
1 - Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kit
1 - Quick installation guide
Standards
FCC
CE
IC
United Kingdom PSTI
UCKA
Warranty
LLTW (Limited Lifetime Warranty)
