euFIX DIN Adapter for Fibaro Dimmer FGD-212

Name: euFIX DIN Adapter for Fibaro Dimmer FGD-212
Brand: Fibaro
SKU: FIBEUD212
Price: 54.45 EUR
Availability: InStock

SKU

FIBEUD212

Brands: Fibaro

€54.45 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

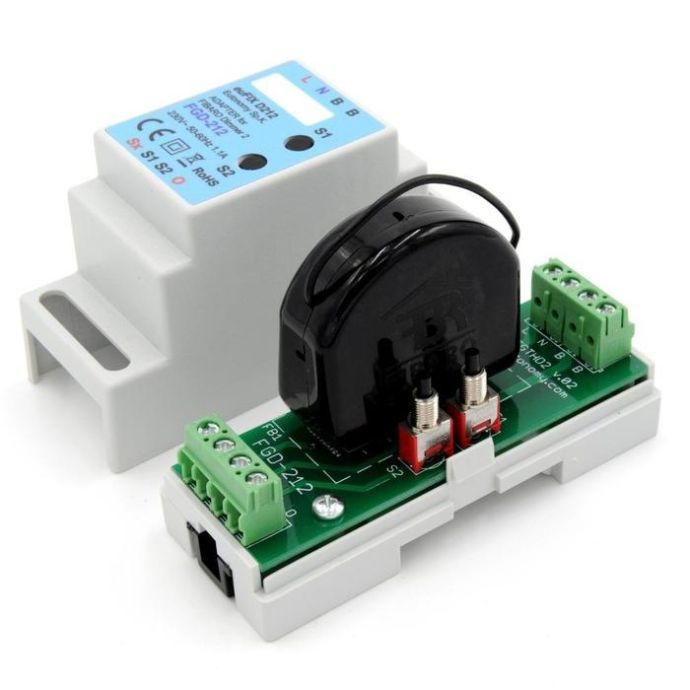

EuFIX D212 DIN Rail Adapter for Fibaro Dimmer FGD-212

The Eutonomy D212 adapter is used to mount the Fibaro Dimmer FGD-212 lighting module on an electrical panel on a standard DIN rail.

The euFIX adapters facilitate the integration of the FIBARO system in homes, offices, warehouses or hotels. They allow the installation of modules in distribution boards, an aesthetic and safe solution. They also provide access to perform checks, repairs or replace them.

All adapters have an intuitive color and labeling system so you know which is the appropriate adapter for each module.

Details

Eutonomy euFIX adapter for mounting Fibaro Dimmer FGD-212 module on DIN Rail

What technical specifications does the euFIX D212 DIN Adapter have?

DIN adapter for Fibaro Dimmer FGD-212 with pushbuttons
It is used to install the Fibaro Dimmer FGD-212 module on the DIN rail type in the electrical panel
Free location on the label to locate the marked line
Supply voltage: 230 V AC +/- 10%, 50-60Hz
Charging power: max. 250 W
Dimensions: 34.8 x 87.3 x 64.7 mm
Width in TE units: 2 TE modules
Wire conductor cross section: max. 2.5 mm2
Maximum length of cables connected to inputs Sx, S1, S2: 20m
Operating temperature: 0 ° C to +50 ° C
Relative humidity: ≤90%, non-condensing
Normative:
- LVD 2014/35 / CE
- RoHS 2011/65 / EU
