euFIX DIN Adapter for Fibaro Double Switch FGS-223

Name: euFIX DIN Adapter for Fibaro Double Switch FGS-223
Brand: Fibaro
SKU: FIBEUS223
Price: 54.45 EUR
Availability: InStock

SKU

FIBEUS223

Brands: Fibaro

€54.45 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

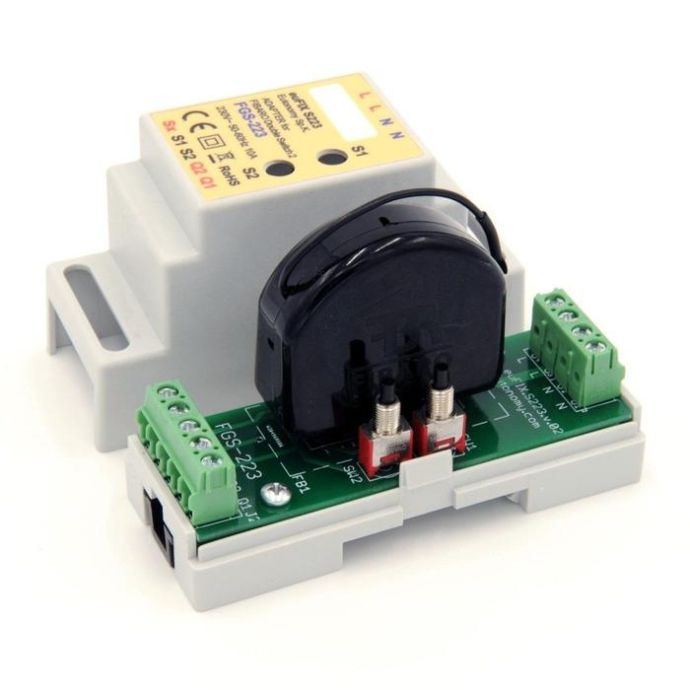

euFIX S223 DIN Rail Adapter for Fibaro Double Switch FGS-223

The Eutonomy euFIX S223 adapter allows the installation of the Fibaro Double Switch DGS-223 module on a DIN rail.

Adapters to integrate the FIBARO system in electrical panels, a more aesthetic, safe and functional solution, facilitating access to carry out checks, replacements or add more modules. Ideal for all types of installations: in homes, offices, warehouses and hotels.

Its installation is really simple thanks to the intuitive labeling and color system of the adapters, which clearly indicates the adapter corresponding to each Fibaro module.

Details

Eutonomy euFIX adapter for mounting Fibaro Double Switch FGS-223 module on DIN Rail

What technical specifications does the euFIX S223 DIN Adapter have?

DIN adapter for Fibaro Double Switch FGS-223 with pushbuttons
It is used to install the Fibaro Double Switch FGS-223 module on the type DIN rail in the electrical panel
Free location on the label to locate the marked line
Supply voltage: 230 V AC +/- 10%, 50-60Hz
Charging power: max. 6.5 A per channel, 10 A total
Dimensions: 34.8 x 87.3 x 64.7 mm
Width in TE units: 2 TE modules
Wire conductor cross section: max. 2.5 mm2
Maximum length of cables connected to inputs Sx, S1, S2: 20m
Operating temperature: 0 ° C to +50 ° C
Relative humidity: ≤90%, non-condensing
Normative:
- LVD 2014/35/CE
- RoHS 2011/65/EU
