euFIX DIN Adapter for Fibaro Relay Switch FGS-212

Name: euFIX DIN Adapter for Fibaro Relay Switch FGS-212
Brand: Fibaro
SKU: FIBEUS212
Price: 54.45 EUR
Availability: InStock

SKU

FIBEUS212

Brands: Fibaro

€54.45 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

EuFIX S212 DIN Rail Adapter for Fibaro Relay Switch FGS-212

Eutonomy euFIX S212 adapter to mount the Fibaro Switch FGS-212 module on a DIN rail inside an electrical panel.

Solution to install FIBARO systems in homes, offices, warehouses or hotels. Adapters for a professional, more aesthetic and safe installation. Mounting the modules in the electrical cabinet facilitates access for maintenance, replacement or expansion.

Its intuitive system of colors and labels allow the user to quickly identify the adapter corresponding to each module.

Details

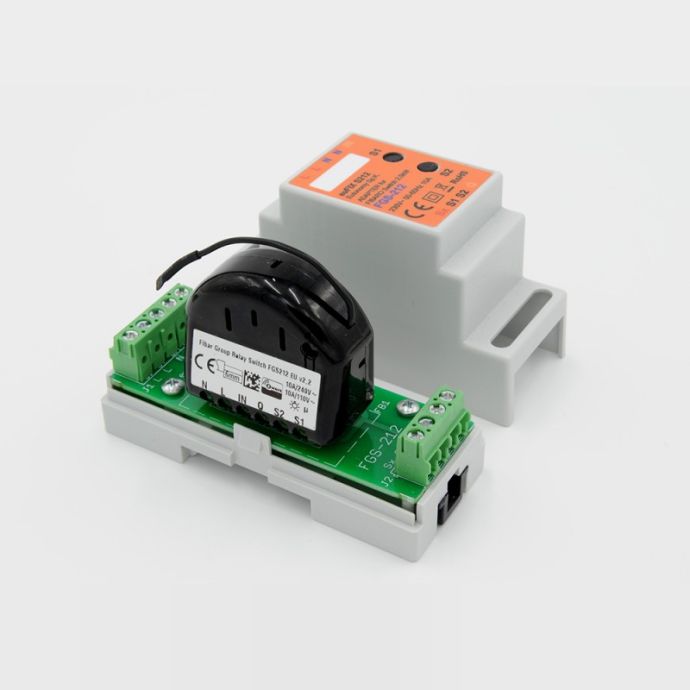

Eutonomy euFIX adapter for mounting Fibaro Relay Switch FGS-212 module on DIN Rail

What technical specifications does the euFIX S212 DIN Adapter have?

DIN adapter for Fibaro Switch FGS-212 with pushbuttons
It is used to install the Fibaro Relay Switch FGS-212 module on the DIN rail type in the electrical panel
Free location on the label to locate the marked line
Supply voltage: 230 V AC +/- 10%, 50-60Hz
Charging power: max. 10 A (resistive load)
Dimensions: 34.8 x 87.3 x 64.7 mm
Width in TE units: 2 TE modules
Wire conductor cross section: max. 2.5 mm2
Maximum length of cables connected to inputs Sx, S1, S2: 20m
Operating temperature: 0 °C to +50 °C
Relative humidity: ≤90%, non-condensing
Normative:
- LVD 2014/35/CE
- RoHS 2011/65/EU
