euFIX DIN adapter for Fibaro Roller Shutter FGR-223

Name: euFIX DIN adapter for Fibaro Roller Shutter FGR-223
Brand: Fibaro
SKU: FIBEUR223
Price: 54.45 EUR
Availability: InStock

SKU

FIBEUR223

Brands: Fibaro

€54.45 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

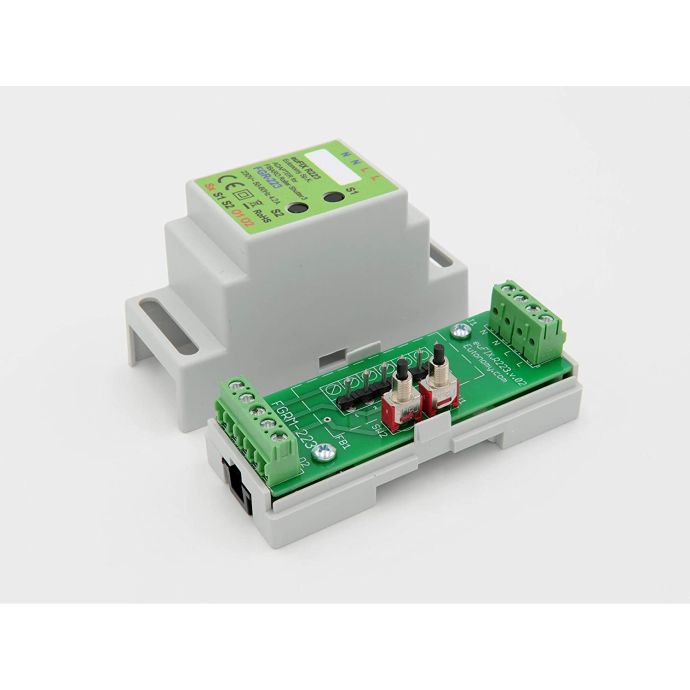

EuFIX R223 DIN Rail Adapter for Fibaro Roller Shutter FGR-223

Eutonomy euFIX R223 adapter to install the Fibaro Roller Shutter FGR-223 blind control module inside an electrical panel with standard DIN rail.

These adapters facilitate the integration of FIBARO systems in homes, offices, warehouses or hotels. They allow the modules to be mounted in electrical panels, which simplify installation and maintenance by facilitating access for repairs, replacements or extensions.

The intuitive color and labeling system of the euFIX lets you know at a glance the right adapter for each module.

Details

Eutonomy euFIX adapter for mounting Fibaro Roller Shutter FGR-223 module on DIN Rail

What technical specifications does the DIN euFIX R223 Adapter have?

DIN adapter for Fibaro Roller Shutter FGR-223 with push buttons
It is used to install the Fibaro Roller Shutter FGR-223 module on the DIN rail type in the electrical panel
Free location on the label to locate the marked line
Supply voltage: 230 V AC +/- 10%, 50-60Hz
Charging power: max 4.2 A
Dimensions: 34.8 x 87.3 x 64.7 mm
Width in TE units: 2 TE modules
Wire conductor cross section: max. 2.5 mm2
Maximum length of cables connected to inputs Sx, S1, S2: 10m
Operating temperature: 0 ° C to +35 ° C
Relative humidity: ≤90%, non-condensing
Normative:
- LVD 2014/35 / CE
- RoHS 2011/65 / EU
