F.O. Socket Kit with Keystone, Adapter and 10m SC/APC Hose

SKU
TEL233240
Brands: Televes
€13.26 Tax included
Availability: In stock
24/48 Hours

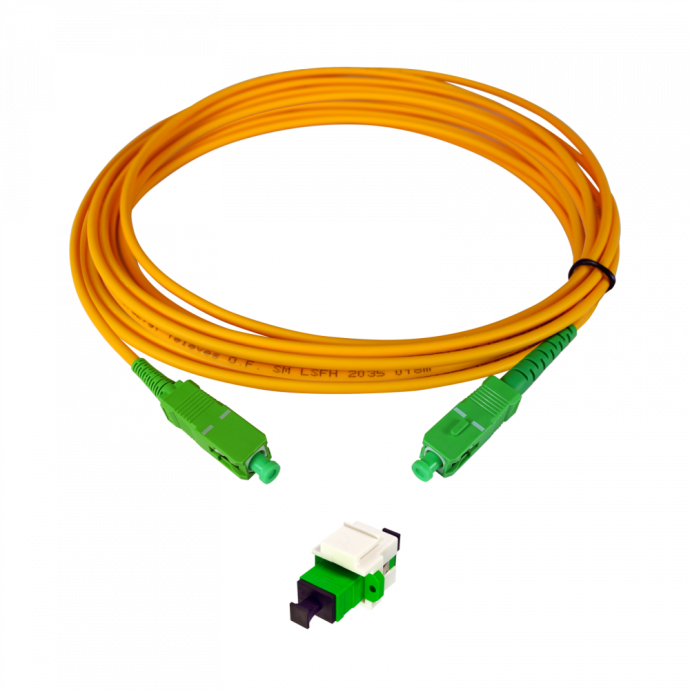

F.O. Socket Kit with Keystone, Adapter and 10m SC/APC Hose


Complete kit for the installation of a fiber optic outlet, in accordance with the ICT-2 regulation. A keystone module, adapter and 10 meter SC/APC hose are included.


The keystone module allows the installation of the female SC/APC fiber adapter in a standard RJ45 jack faceplate. This module, together with the adapter, form a fiber optic terminal socket.


The 10 meter Euroclass Dca LSFH fiber patch cord, pre-connectorized at both ends (SC/APC), allows signal transmission from the optical PAU to the socket. Specially designed with a shorter boot at one of its ends, avoiding increases in attenuation due to curvatures.

-
+

Technical Specifications of F.O. with Keystone, Adapter and 10m SC/APC Hose



Euroclass   Dca
Euroclass: Smoke Production   s2
Euroclass: Flaming droplets   d2
Euroclass: Acidity   a1
Fiber core type   sm_g657a2
Optical fiber type category   OS1
Fiber core diameter μm 9
Fiber cladding diameter μm 125
Coating buffer diameter μm 250
Cable structure   ajustado
Plastic buffer diameter mm 0.85
Outer sheath Diameter mm 3
Outer sheath Material   LSFH
Blocking jelly   No
Attenuation 1310nm dB/km < 0.8
Attenuation 1490nm dB/km < 0.8
Attenuation 1550nm dB/km < 0.8
Insertion losses in connector 1 dB < 0.5
Insertion losses in connector 2 dB < 0.5
Return losses in connector 1 dB > 60
Return losses in connector 2 dB > 60
Optical connector type 1   sc
Polishing type (Optical connector 1)   apc
Optical connector type 2   sc
Polishing type (Optical connector 2)   apc
Short tension N 450
Long tension N 200
Structure reinforcement element   Aramida
Short crush (@100mm) N 500
Long crush (@100mm) N 100
Minimum bending radius mm 15
Operating temperature °C -20 ... 70
More Information
EAN 8424450223024
Hight 0.130
Length 0.030
Width 0.130
System DTT Optic Fiber
Serie 10m
Fiber type Singlemode
Color Yellow
Product Brand Televes
