Fagor 48dB 950-2150MHz FI Modular Amplifier

Name: Fagor 48dB 950-2150MHz FI Modular Amplifier
Brand: Fagor
SKU: FAGIFA400
Price: 87.57 EUR
Availability: InStock

SKU

FAGIFA400

Brands: Fagor

€87.57 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

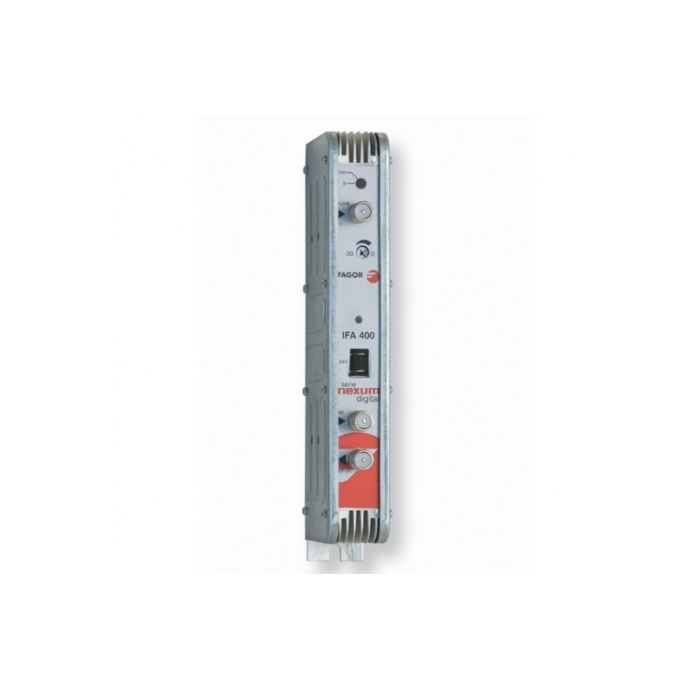

Monochannel FI 48dB 950-2150MHz Amplifier Fagor IFA 400

Equalized amplifier to amplify the 1st IF SAT (950-2150 MHz) signal and mix with the terrestrial channels. Fagor's Nexum series single channel for collective TV-SAT installations.

This single channel amplifier offers up to 40-48dB of gain, adjustable ± 20dB, and a maximum output level of 113dBμV. Easy to install thanks to its mixing system at the inlet and automix at the outlet. This equipment is powered at 24Vdc: the Nexum SPS 523 Fagor power supply is required.

Manufactured in Zamak chassis of great strength and high shielding, with F connectors for greater reliability and shielding. Dimensions: 195x70x32 mm.

Details

Nexum series 48dB gain and 113dBμV output Single Channel Satellite Amplifier (950-2150 MHz)

What technical specifications does the Fagor IFA 400 Single-channel Amplifier have?

Covered frequencies MHz 950 ÷ 2150
No. of inputs 1st IF 1 (950 ÷ 2150 MHz)
No. of RF inputs: 1 (5 ÷ 862 MHz)
1st IF Gain: 40 (950 MHz) | 48 (2150 MHz
Noise figure: 7 dB
RF signal rejection (1st IF input): 40 (5 ÷ 862 MHz)
RF through losses: 1.5 (5 ÷ 862 MHz)
Gain regulation: 20 (950 ÷ 2150 MHz)
Output level @ 2150 MHz: 125 (DIN 45004B, DIM –35 dBc) | 113 (30 transponders, DIM –35 dBc Return loss: 9 dB
Voltage to LNB: 13 VDC / 300 mA
Dimensions: 195x70x32 mm
Weight: 0.35 kg

More Information

More Information
EAN	8432589392047
Hight	0.030
Length	0.150
Width	0.040
System SAT	SAT Amplifier
MANUFACTURER SERIE SAT	Nexum
Color	White
Type	Single channel amplifier
Entorno	Interior
# Inputs	2
Outputs	1
Gain	48
Max. output level Ganancia (dB/uV)	125
LTE compatible	No
Current bypass	Satellite
Product Brand	Fagor
