Fagor TV Socket Base, Intermediate R/SAT with Derivation Losses -20 dB

SKU
FAG86258
Brands: Fagor
€7.45 Tax included
Availability: In stock
24/48 Hours

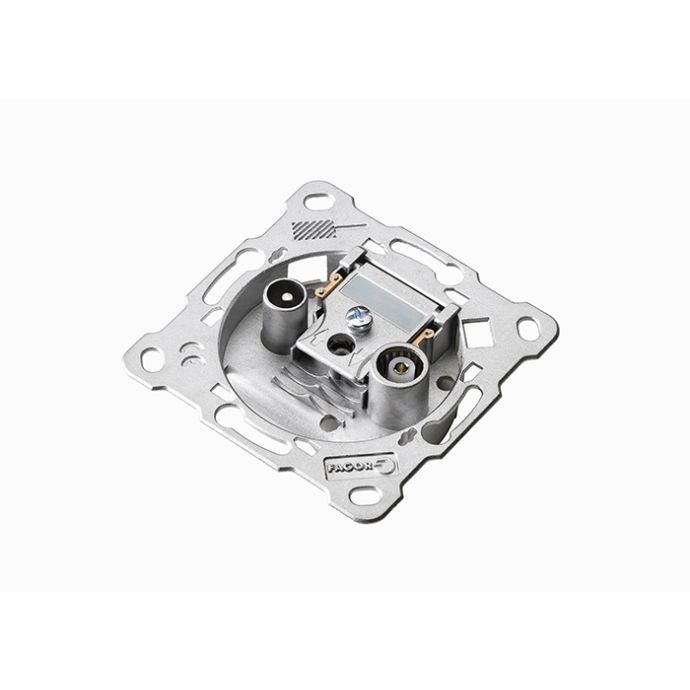

Fagor TV Socket Base, Intermediate R/SAT with Derivation Losses -20 dB

Intermediate socket for use in digital television and satellite signal distribution systems. These shots are used in the middle section of the waterfall. It has 2 outputs and works in the 5-2300MHz band for individual and collective installations.

This socket base has inductive devices for the adequate filtering of the signals at its outputs, obtaining minimum step losses.

The BSF 220 N has branch losses of 20dB and return losses of 10dB. Its connectors are IEC type male for TV and female for SAT.

The circuit is housed in a metal chassis made of zamak and has special shielding for both input and output connections. Very easy to install.

-
+

Technical Specifications of the TV Socket Base, Intermediate R/SAT with Derivation Losses -20 dB from Fagor



MODEL

BSF 220 N

Reference

86258

Number of output

2

Covered band                                       MHz

5 ÷ 2300

Current step

IN-OUT 300 mA max



SAT 300 mA max



5 - 30 MHz

3,0

Step Attenuation          47 - 862 MHz dB
950 - 2150 MHz

3,0

2150 - 2300 MHz

3,0

5 - 30 MHz
Bypass Atenuation                    47 - 862 MHz dB
950 - 2150 MHz
2150 - 2300 MHz

16

20

20

22

5 - 30 MHz

25

Directive Attenuation 47 - 862 MHz dB
950 - 2150 MHz

25
25

2150 - 2300 MHz

23

5 - 30 MHz
Isolation betwen               47 - 862 MHz dB salidas                            950 - 2150 MHz
2150 - 2300 MHz

35

30

25

30

Return losses            5 - 862 MHz dB
950 - 2300 MHz

10
6

Shielding factor

VHF UHF
SAT

30 - 300 MHz
300 - 862 MHz dB
950 - 2300 MHz

75

65

55

Output Connector                               TV
(UNE 20-523-79)
SAT

IEC 9,5 (m)
IEC 9,5 (h)

Measurement packaging (20 u.)                 mm

300 x 165 x 85

Weight(20 u.)                                                 Kg

2



More Information
EAN 8432589862588
Hight 0.060
Length 0.060
Width 0.050
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT Network Termination
Color White
TV-SAT Distribution Equipment Connection
Entorno Interior
TV-SAT Distribution Connection F
Insertion Loss (dB) 20
Current bypass No
Product Brand Fagor
