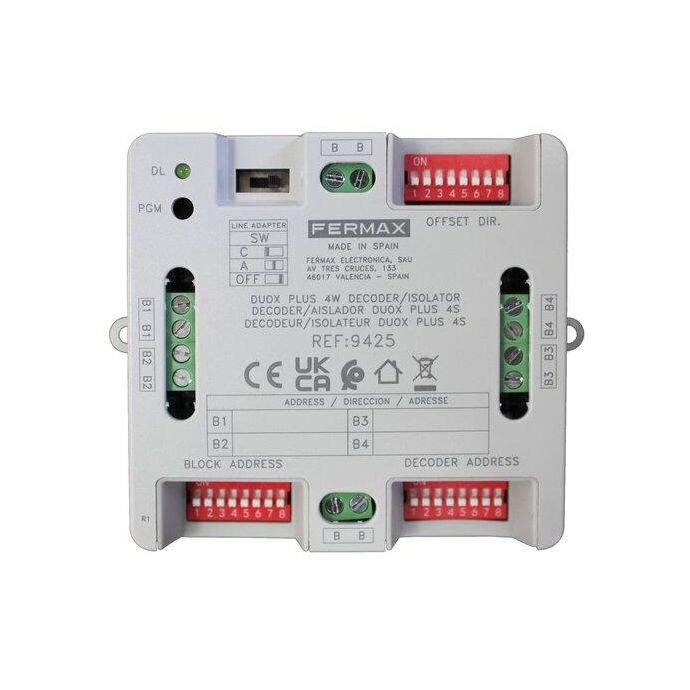

Duox Plus Decoder/Isolator 4 Outputs 9425 by Fermax

This device is used in Duox Plus installations to improve its conditions. Its use is recommended when we find buildings with more than 6 homes per floor, if the distance from the terminals to the trunk is greater than 25 meters or when in our installation we have a mixture of different types of cables or all the cables are going to the same point.

It has 4 exits for 4 homes. In each home, up to 3 terminals per home are possible.

Among its functions, the following stand out: greater bypass distance, isolation between terminals, remote terminal programming, lock/unlock monitor installer menu.

Details

Technical Specifications of the Duox Plus 4 Output Decoder/Isolator 9425 from Fermax

TECHNICAL CHARACTERISTICS

The assembly can be carried out either by screw fixing or by installation on a DIN rail.
Dimensions: 86 (H) x 106 (W) x 31 (D) mm. Eliminating the lateral fixing supports for the screws, the width is 89 mm.
Unlike the 10-output decoder, the power strips are not removable.

Supply voltage: 24 Vdc
Standby consumption: 0.912 W
Maximum consumption: 1,344 W
Note: Max 1 A per output

COMPATIBILITY

NOTE 1: The decoder supports the auto-on functions, F1, F2, call to the concierge center and second channel, taking into account that only one channel can be active in each decoder at a time.

NOTE 2: The decoder is compatible with Duox and Duox Plus installations, but not all functions are compatible with all versions of Duox Plus terminals, as can be seen in the table included in the technical manual.

Technology: DUOX

Product measurements: 86 x 106 x 31 mm

Weight: 0.202 kg

Packaged product measurements: 6.5x18.1x9.6 cm

EAN 13:8424299094250
