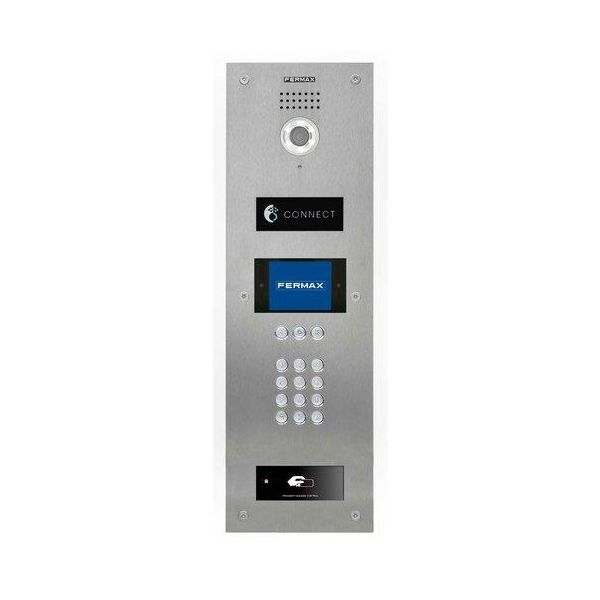

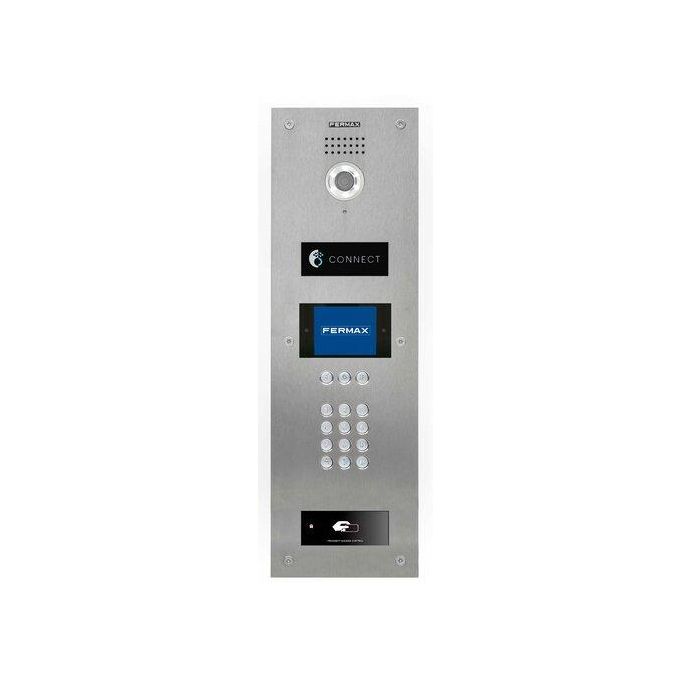

Fermax Marine Connect Duox Plus Digital ST4 Prox Plate
Fermax Marine Connect Duox Plus Digital ST4 panel
The 55280 anti-vandalism marine plate is made of stainless steel 2.5mm thickr. Perfect for installation in places with extreme weather conditions or hazardous environments, in humid or corrosive climates. It is compatible with all DUOX PLUS products. This plate allows communication with homes, door opening, concierge calls, etc.
This board includes both the DUOX PLUS CONNECT amplifier module and the CONNECT module. These two modules allow the connectivity of the installation by 4G without additional cost to the community of neighbors.
The included camera has a wide-angle lens with integrated illumination and regulation system for camera focus.
The display graphic display is 3.5" with 4:3 format, with activation by presence sensors. It has a resolution of 320x240 pixels. It has navigation buttons, an electronic directory of residents, allows configuration by menu from the keyboard, loading images, logos and personalized messages.
The keypad is metallic and made of zamak, with permanent backlighting. The door can be opened with the keypad through a previously programmed PIN code.
The proximity reader allows the user to open the door by bringing a proximity card or key fob close to the door without the need for physical contact. The enabling cards operate at 125KHz.
The advantages of the connectivity of the CONNECT board allow the installer to detect incidents remotely through MyConnect, which allows remote management of DUOX PLUS installations. Communications are carried out with maximum security and privacy.
The Marine plate does not include a recessed or surface box, it must be purchased separately. Two or more plates can be combined, as long as they are of the same series. For its coupling, it is necessary to use the set of spacers (art. 2289) every two plates.
The plate has a dimensions of 150x485mm.
