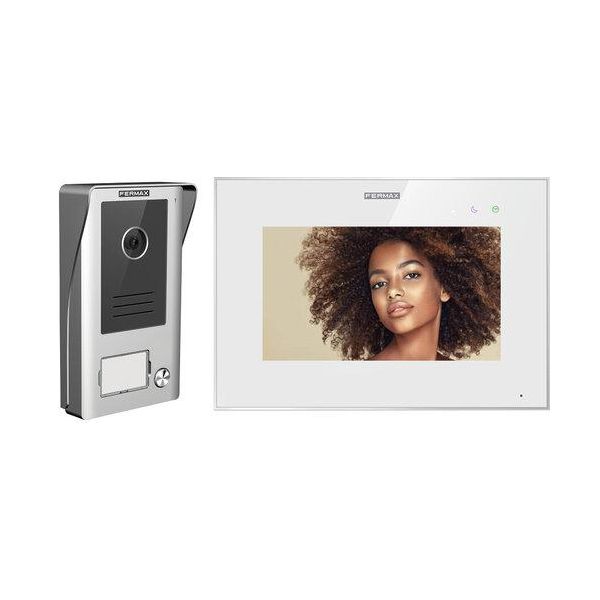

Technical Specifications of the Fermax Way-Fi Plus 7" 1/L Video Door Station Kit Way-Fi Plus 7" 1/L
WAY-FI 1/L video board with visor:
-Mounting: Surface mounted. Rain visor included for mounting.
- IP / IK rating: IP 44 / IK 07
- Material finish Aluminum
- Electric lock release activation: Yes (12 Vdc 250 mA output, terminals S+, S-). Timer (1-8 s.)
- Potential free relay for 2nd door activation (garage door): Yes. Configurable as Normally Open/Closed. Timer (1-8 s.)
- Entrance hall exit pushbutton connection: Yes. Activates electric lock release (S+, S-) while pressed. PL, S+ terminals
- Camera: CMOS, resolution 900 TVL. Wide angle (H=120º; V=72º). White LEDs (6) for camera illumination with light sensor activation.
- Card holder and push button set: Front removable card holder and call button, both with blue LED backlighting. Backlight activation by light sensor.
- Possibility of additional boards: No
- Speaker volume adjustment: Yes
- Operating temperature: [-25ºC, +70ºC]
- Maximum electric lock release consumption: 250 mA in maintenance.
Monitor WAY-FI 7" COLOR with IPS capacitive touch screen:
-Call forwarding to cell phone: Yes (unlimited number of cell phones that can be paired). Possibility to select on the monitor whether the call rings at the same time on the monitor and on the smartphone or first on the monitor and then on the smartphone (programmable delay time 5-25 s.). Forwarding can also be disabled from the monitor.
- Mounting: Surface mounted (wall connector included)
- Display: 7" capacitive touch screen (16:9 widescreen format). Resolution 1024 x 600 pixels. Wide viewing angle (IPS LCD technology). Intuitive user interface compatible with swipe operations.
- Leds: White: Monitor On; Purple: Do not disturb On; Green: Photos/Videos pending display
- Conversation mode: Hands-free
- Doorbell connections: Yes (GND, BELL terminals)
- Date and time: Yes (Time: 24h format; Date: configurable format). Programmable manually from the monitor or synchronize from the APP.
- Do not disturb mode: Yes. Immediate and/or timed activation/deactivation for a time slot of the day.
- Photo capture: Yes. Automatic-Deactivatable (disabled by default) and Manual. 100 photos without Micro SD card, 1,000 with Micro SD. Photos on the monitor can be copied to Micro SD card.
- Video capture: Yes. Automatic-Disable (disabled by default) and Manual. Only with Micro SD card 8-32 GB, not included in the kit. Up to 128 videos of 15 s.
- Delete photos and videos: Yes. One by one, select several, select all. When you reach the storage limit deletes the oldest ones. Option to format the Micro SD. Activated by default deletion after 30 days.
- Call history (with date and time): Yes. Photos and videos are stored with date and time.
- Auto-on (display of the street from the monitor): Yes
- Pedestrian door opening (electric door opener): Activates 12 Vdc output (S+, S- terminals on board). Programmable opening time (1-8 s.)
- Garage door opening (electromagnetic door opener): Activates relay (COM, O/NC terminals). Programmable opening time (1-8 s.)
- Image adjustments: Yes (Brightness, Contrast and Color)
- Call and conversation volume adjustment: Yes (levels 0-8)
- Internal home intercom function: Only between monitors (not with smartphones). Possibility of call to one or call to all. Maximum up to 3 monitors per house (1 Main and 2 Additional)
- Menu languages: 16
- Call melodies: 16. Selectable for: badge call, doorbell, intercom call.
- Compatibility with CCTV cameras: No
- Opening function for professionals (Doormatic): No
- Connections: Bus (B, B); Doorbell (GND, BELL); Micro SD card slot (8-32 GB); Micro USB connector for Micro USB to RJ45 (Ethernet) adapter, incl. cable; Impedance matching switch for video signal (dipswitch 1 ON at end of line).
Way-Fi 100-240Vac power supply:
-AC input current: 100V~240V, 2A, 50Hz/60Hz.
-DC output current: 32±2V, 3.5A.
-Dimensions 140(W) x 97.5(H) x 58.5(D) (without wall bracket).
-Installation method DIN rail mounting (8 DIN modules).
-Includes protection against over current and short circuits.
APP-SMARTPHONE
- App: Free. Compatibility iOS (9.0 or higher); Android (5.1 or higher)
- Operation: Wi-Fi and/or 3G/4G
- Maximum number of pairings per installation: unlimited
- Maximum number of installations per smartphone: unlimited
- Auto-on (display of the street from the monitor): yes
- Differentiated opening residential door and garage door: Yes (via security code)
- Photo capture and video recording: Manual (storage on smartphone only)
- Conversation mode: Configurable Hands-free (default) / Push-to-talk
- Microphone cancellation (mute) and speaker (mute): Yes
- Display mode: Adjustable (25 fps, 10 fps, still image+audio). Full screen option
- Call log: Yes (missed, received, with date and time information).
