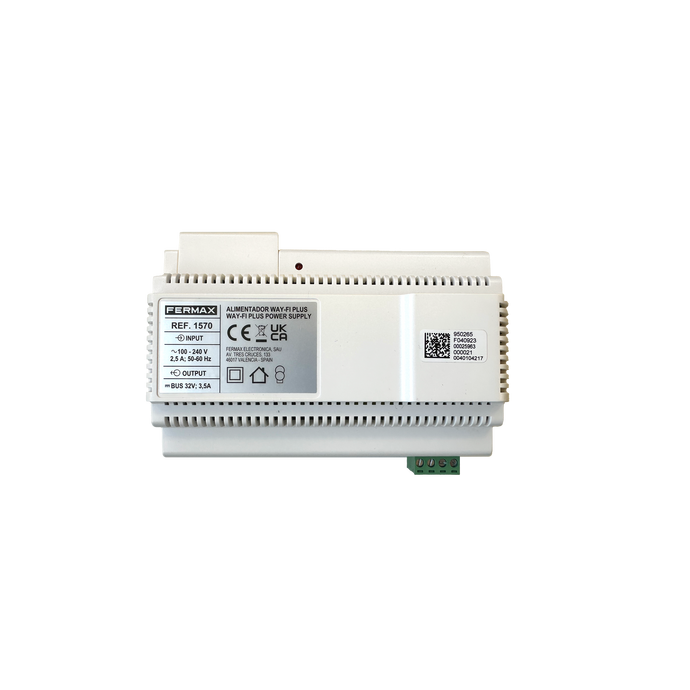

Fermax WAY-FI Plus DIN8 32Vdc 3.5A power supply

SKU
FER1570
Brands: Fermax
€54.51 Tax included
Availability: In stock
24/48 Hours

Feeder with Filter for Fermax WAY-FI PLUS Kit

This feeder is prepared for use in installations with the WAY-FI PLUS kit. It comes prepared for DIN8 rail. It has an input voltage of 100-240Vac operating at a frequency of 50-60Hz and a DC output current of 32V with 3.5A..

The power supply has short-circuit, over current and over voltage protections.

Attachment to the DIN rail is simple, it is done through screws by pulling the mounting fixture. Wiring is done by removing the AC cover and connecting the AC cable (L, N). We connect the wiring to the board and monitor and replace the cover.

It is compatible with 1572 and 1573 monitors. Dimensions: 140x97.5x58.5mm.

-
+

Technical Specifications of the Feeder with Filter for Fermax WAY-FI PLUS Kit

  • AC input current: 100V~240V, 2A, 50Hz/60Hz.

  • DC output current: 32±2V, 3.5A.

  • Dimensions 140(W) x 97.5(H) x 58.5(D) (without wall bracket).

  • Installation method DIN rail mounting (8 DIN modules).

  • Includes overcurrent and short-circuit protection.



Technology: WAYFI PLUS

Weight: 0.496 kg

Dimensions of the packed product: 7x19,8x10,9 cm

EAN 13: 8424299015705

More Information
EAN 8424299015705
Hight 0.220
Length 0.070
Width 0.100
System AC
SERIE WAY-FI
Color White
Type Power supply
Product Brand Fermax
