Jeweller Hub 2 White Alarm System by Fibaro

SKU
AJ-HUB2-DC6V-W
Brands: AJAX
€258.82 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

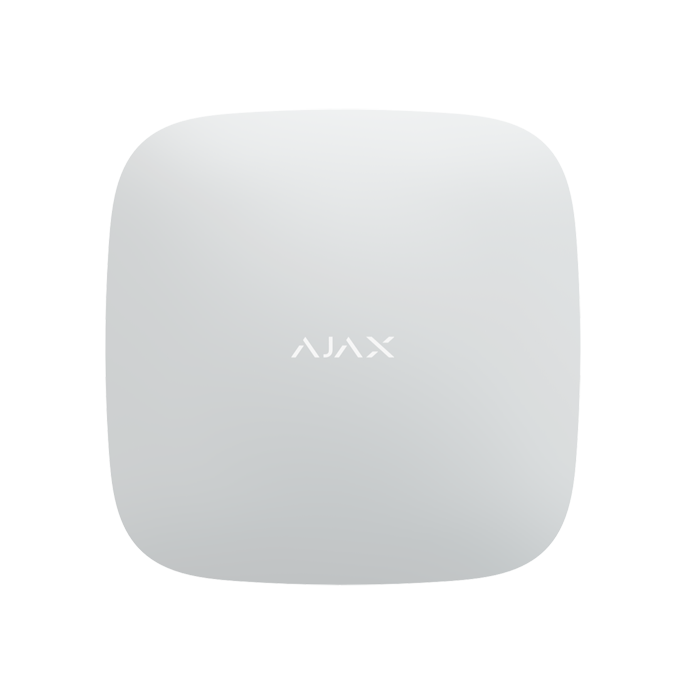

Ajax White Professional Alarm Center Grade 2 DC6V

This control panel is a complement to the Ajax alarm system. It is an alarm center for professional installations in which the mains supply is not necessary. It works autonomously, powered by 6V DC.

You can connect the control panel through the Ethernet port or/and 2 GPRS with dual SIM. Which makes it a great advantage when accessing remotely, since we can connect through the AJAX PRO PC software. It also allows connection via mobile. With what we can configure the system in a very simple way, manage users, their permissions, etc,

The link with the detectors and accessories is done by radio frequency. It uses the Jeweler 868MHz protocol. This system has obtained Grade 2 certification.

The control panel allows the connection of up to 100 wireless devices and divide them into up to 9 different groups, with differentiation of actions such as arming, disarming, partial arming.

The control panel has a 6V DC power input and a backup battery that can last up to 16 hours.

From the mobile application you can verify the video flow, adding up to 25 IP cameras or video recorder channels.

The Ajas user will be able to enjoy many advantages, being able to receive reliable and instant notifications in the desktop software as well as in the mobile applications.




Box contents:

*Control Panel
*CON280 connector
*Instructions for use

-
+

Technical Specifications of the Ajax White Professional Alarm Center Grade 2 DC6V



Brand AJAX
RF frequency 868 MHz. Jeweller and Wings radio protocol
Internal security Tamper-resistant opening
Internal siren No
Communication Ethernet / Dual SIM 2G (GPRS)
Maximum devices 100
Video integration Up to 25 IP cameras or video recorder channels
Number or users Up to 50
Connection with CRA Contact ID / SIA
Compatibility Not compatible with ocBridge and uartBridge
Housing material ABS plastic
Power 4.2-16 V DC
Maximum input current 2.2 A (@4.2 V DC) / 0.5 A (@16 V DC)
Output current 1.5 A
Average consumption per hour 95 mA
Backup battery Duration up to 16 hours
Temp. operation +5º C ~ 40º C
Dimensions 163 (H) x 163 (W) x 36 (D) mm
More Information
Hight 0.000
Length 0.000
Width 0.000
SECURITY - SYSTEM Jeweller
SERIE HUB
Color White
Automation Central
Product Brand AJAX
Write Your Own Review
You're reviewing:Jeweller Hub 2 White Alarm System by Fibaro
Your Rating
File Label Size Download
pdf Ficha Técnica Central Ajax AJHUB2DC6VW 86 KB Download
