Fiber optic splitter with 1-way, 4-way SC / APC connector FO-070033 from Tecatel

SKU
TECFO070033
Brands: Tecatel
€12.35 Tax included
Availability: In stock
24/48 Hours

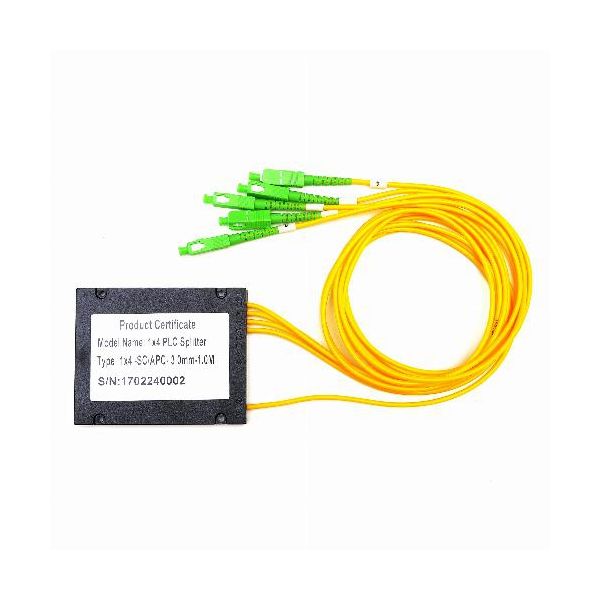

Tecatel 4-outlet fiber splitter

The distributor FO-070033 of Tecatel is a fiber optic distributor, with 1 input and 4 outputs.

This distributor comes pre-connected with a 1 meter long cable with SC / APC connector to the input and a cable connected to each output.

The fiber optic distributor FO-070033 of Tecatel complies with ICT2 regulations.

-
+

The fiber optic distributor FO-070033 is an optical distributor of one input and four outputs with SC / APC connectors.

What technical characteristics does the optical distributor FO-070033 have?

  • Fiber optic splitter type box 1 input and 4 outputs 3 mm
  • Connectorized SC / APC
  • Length 1 meter
  • Applications Applications
  • FTTH
  • CATV system
  • Network protection
  • Access / Distribution PON
  • Local area networks (LAN)
  • Meets ICT2 regulations

What technical specifications does the optical distributor FO-070033 have?

  • Operating wavelength: 1.310 / 1.550 nm
  • Maximum insertion loss: 7.4 dB
  • Maximum loss of uniformity: 0.6 dB
  • Maximum PLD: 0.2 dB
  • Return loss: ≥ 50 dB
  • Directivity: ≥ 55 dB
  • Operating temperature range: -40 ºC ~ +85 ºC
  • Fiber specifications
  • Fiber type: G657-A2 single mode
  • Diameter of the core: 9 μm
  • Cladding diameter: 125 μm
  • Diameter of the cable: 3 mm
  • Fiber length: 1 m
  • Operating temperature range: -40 ºC ~ +85 ºC
More Information
EAN 8430549047532
Hight 0.150
Length 0.040
Width 0.110
Color Black
RED - System Fibra Óptica
RED - SERIE FO Distribution
Product Brand Tecatel
FO Distribution FO Splitter
Entorno Interior
