Fiber Test UTP Pocket Optical Power Meter

SKU
PROLITE24
Brands: Promax
€104.91 Tax included
Availability: In stock
24/48 Hours

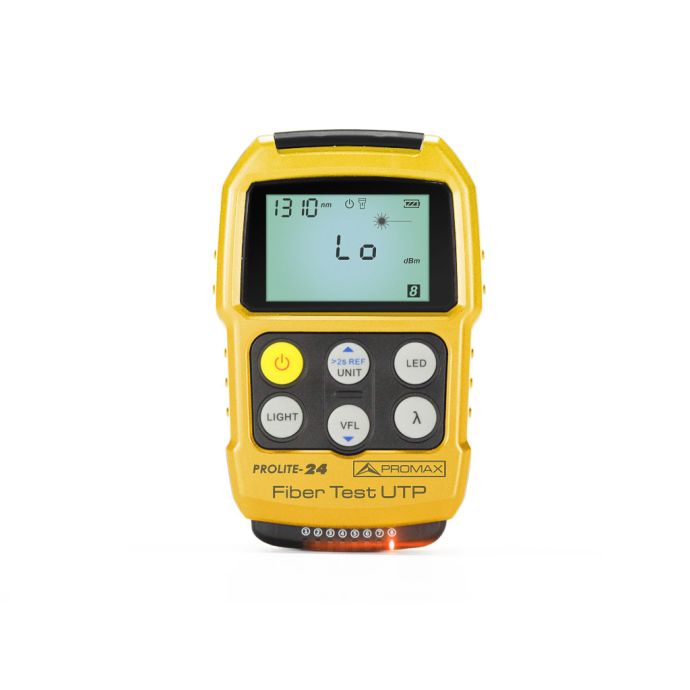

FiberTest-UTP PROLITE24 Power Meter

If you are an installer, this is the tool that you cannot miss. It is a very compact, practical and economical multi-tool that you can always carry with you in your fiber optic network and structured cabling installations.

On the one hand, it is a device capable of verifying optical fiber and utp cable.

It has two universal type connectors that are used for single mode and multimode. With one of the connectors we will detect if the fiber cable we are testing has leaks, is cut, has losses and with the other we will obtain a measurement of the fiber signal, whether single mode or multimode, as well as identify the type of length of wave that is reaching us (up to 7 wavelengths).

For the UTP part, the device comes with a probe-type terminal that will diagnose the connection of the ethernet cable pins, or if the cable is crossed or open.

The meter is compact, battery operated (lasting up to 80 hours) and weighing only 140g.

-
+

Technical Specifications of the FiberTest-UTP PROLITE24 Power Meter

Compact and multifunctional three-in-one mini meter: Optical power meter with 7 calibrated wavelengths, visual fault locator and ethernet tester. Want to see more about him?





MEDIDOR DE POTENCIA ÓPTICA
Longitudes de onda calibradas 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
Margen de medida De -70 dBm a +6 dBm
Frecuencias detectadas 270 Hz / 330 Hz / 1 kHz / 2 kHz
Modos de medida Normal o en base a un valor de referencia definido por el usuario
LOCALIZADOR VISUAL DE FALLOS
Longitud de onda 650 nm ±3 nm
Potencia de salida 2 mW
Modos de salida CW (continuo), 1 Hz o 1 Hz
TESTER ETHERNET
Conexión Conexión de los extremos del cable ethernet al módulo remoto (incluido) y al equipo
Modo de funcionamiento Prueba secuencial de los 8 hilos del cable
OTRAS CARACTERÍSTICAS
Pantalla Pantalla LCD retroiluminada
Linterna Linterna frontal LED incluida
Calibración Modo de calibración seleccionable
ALIMENTACIÓN 3 pilas tamaño AAA (autonomía 80 horas)
More Information
EAN PL024AES01
Hight 0.110
Length 0.030
Width 0.080
Color Yellow
Product Brand Promax
System Fiber Optic Meter
SERIE Economical
Instrumentation Test
