Floor Rack 19'' 42U 600x900 with GTLAN Accessories

SKU
GTL31GTS4296
Brands: GTlan
Free shipping
(Iberian Peninsula)
Availability: Out of stock
Consult

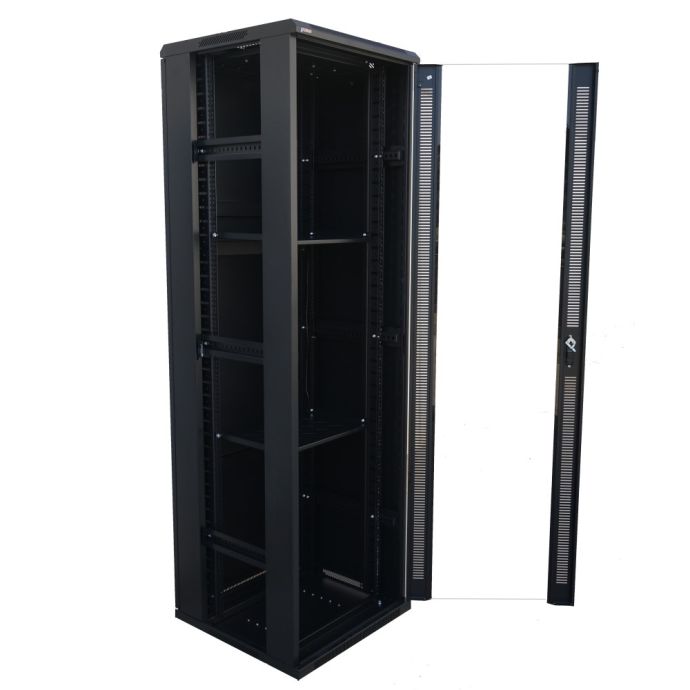

19” Floor Rack with 42U height and 900mm Depth

Floor rack cabinet for telecommunications installations. A rack cabinet is used to place the equipment of the telecommunications network in an orderly manner.

The rack is 42U high and has a depth of 900mm. It has a 5mm thick tempered glass front door. It is provided with a key in the rectangular lock, to protect the equipment inside. The sides are easily removable.

The legs are height adjustable and are equipped with wheels, of the 4 wheels, two of them come with brakes.

The cabinet is provided with a series of accessories:

*2 Fixed Trays

*1 Power Strip

*Ceiling fans in closet

*1 Screw/nut kit

*4 wheels

*4 Leveling Feet



Complies with ANSI/EIARS-310-D, DIN41491, PART1, IEC297-2, DIN41494, PART7, GB/T3047.2-92

Technical Specifications of the 19” Floor Rack with 42U height and 900mm Depth





Height U

42U

High

1975mm

Width

600mm

Depth

900mm

Maximum load

800kg

Protection

IP20

Finish

Fine-grain powder coating, color black RAL9004

Front door

Glass with rectangular lock

Back door

Smooth with round lock

Laterals

Removable smooth with plastic closures (optional round lock)

Cabling

upper and lower

Profiles

4 "U" type, made of 2 mm thick steel and adjustable in depth

Materials

5mm tempered glass, 2mm SPCC cold rolled steel

Accessories

2 fixed trays, 1 19" power strip, ceiling with fans, 1 screw/nut kit, 4 wheels, 4 leveling feet.

More Information
Hight 0.000
Length 0.000
Width 0.000
RED - System Rack Cabinets
RED - SERIE 19"
Color Black
Width 19"
Depth 900 mm
Rack type Rack cabinete
Frame Floor
Product Brand GTlan
