Floor Rack Cabinet 19" 22U Depth 900 with Accessories GTLAN

SKU
GTL31GTS2296
Brands: GTlan
€683.89 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

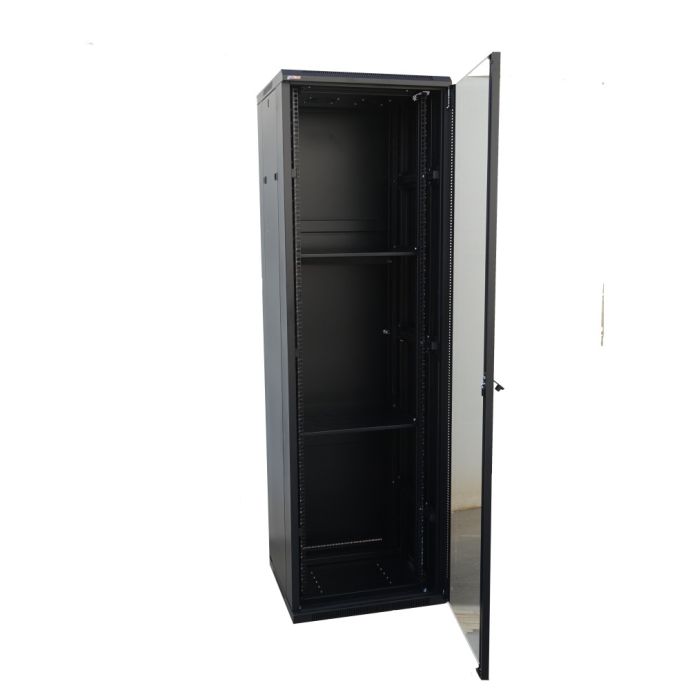

Rack Cabinet Floor 19" 22U Depth 900 and Accessories GTLAN 31GTS2296

Floor rack cabinet of 19" width (600mm)22U height (1098mm) and 900mm depth, with accessories included: fixed tray + 19" power strip + ceiling with 4 fans + screws/nuts kit + 4 wheels kit + kit 4 leveling feet.

GTLAN Global series cabinets to cover all data network installation needs. Great robustness and design, suitable for offices, shops, data centers or industrial environments.

5mm tempered glass front door with rectangular lock, smooth rear door with round lock and removable smooth sides with plastic closures. Hinge system that allows changing the door opening direction without tools.

-
+

19" Floor Rack Cabinet, 22U high and 900mm deep with Accessories included

What technical specifications does the GTLAN 31GTS2296 Rack Cabinet have?

  • Model: 31GTS2296
  • Capacity: 22 U
  • Profile: U type
  • Maximum load: 800 kg
  • Material: 5mm tempered glass, 2mm high quality cold rolled SPPC steel
  • Clamping profiles: 4 units movable in depth (2mm thick)
  • Front door: 5mm tempered glass with rectangular lock
  • Rear door: Smooth with round lock
  • Sides: Removable plain with plastic closures (optional side round lock)
  • Wired input: Top and bottom
  • Finish: Fine grain powder coating
  • Color: Black RAL - 9004
  • Measurements: 1098x600x900 mm
  • Measures with packaging: 1200x620x920 mm
  • Weight: 73.91 kg
  • Weight with packaging: 75 kg
  • Accessories: Fixed tray + 19 "power strip + ceiling with fans + screws / nuts kit + 4 wheels kit + 4 leveling feet kit
  • Tightness: IP20
  • Regulations: EIA / ECA-310-E, IEC 60297, ETSI / EN 300 119, RoHS 2011/65 / EU AND CE
  • Cubic capacity with pallet: 0.703 m3
More Information
EAN 8400005599622
Hight 0.000
Length 0.000
Width 0.000
Color Black
Units 22
Width 19"
Depth 600 mm
Rack type Rack cabinete
Rack accessories Other accessories, Plates, Strips, Ventilation units
Frame Floor
Product Brand GTlan
