Optical UAP 2 outputs SC/APC + FO 25m

SKU
PAU2ADA25M
Brands: GTlan
€20.24 Tax included
Availability: In stock
24/48 Hours

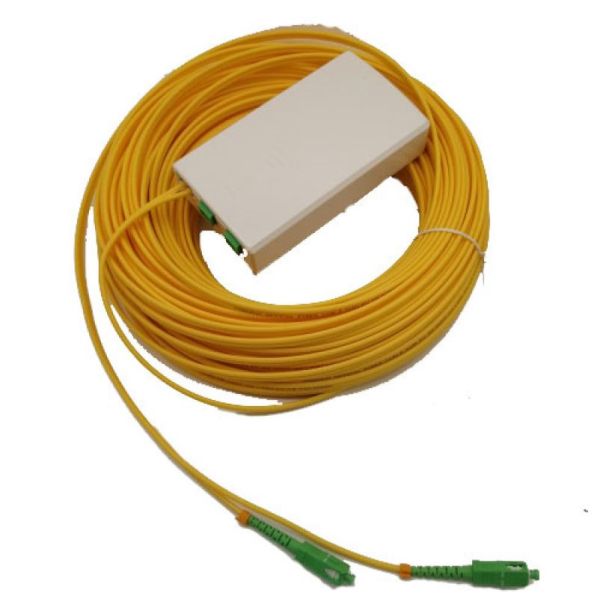

GTLAN UAP with 2 SC/APC outputs and 25m cable

User Access Point for FTTH Fiber Optic networks with 2 SC/APC connectors and 2-fiber 25-meter singlemode cable preconnected with Halogen-free indoor cover for down to the connection point.

This UAP with 25 meter cable LSZH preconnected greatly facilitates the FTTH fiber installation in an ICT by saving the mounting of the connectors on each equipment. It also includes the necessary screws for wall mounting.

Contact us if you are looking for a budget for other measures or solutions according to your needs.



-
+

UAP of Fiber Optic preconnected 2 SC/APC Outputs with 25 meter patch cords

What technical specifications do GTLAN Optical UAPs have?

Box Specifications:

  • Material: ABS plastic
  • Cable entry: Bottom
  • Fixation: Surface
  • Connectors: 2x SC / APC + 2 (cascaded)
  • White color
  • Measurements: 135 x 75 x 25 mm
  • Packaging: Unit
  • Regulations: UL94 V-0, IEC 61754-4, Telcordia GR-409, Telcordia GR-326, IEC 60793, RoHS 2011/65 / EU and CE

Hose Specifications:

  • FO cable type: Duplex
  • Cover material: LSZH
  • Cover color: Yellow
  • Cable diameter: 3 mm
  • Adapters: 2x SC / APC
  • Insertion loss: ≤ 0.2 dB
  • Return loss: ≥ 60 dB
  • Fiber type: Singlemode G.657.A2
  • Working temperature: -40º to 80º C
  • Tensile strength: 10 N
  • Min. Bend radius: 35 mm
More Information
EAN 8421622500013
Hight 0.200
Length 0.100
Width 0.200
System DTT Optic Fiber
Serie 25m
Fiber type Singlemode
Entorno Interior
Color White
Product Brand GTlan
