FO rosette with Fusion Tray + 2x SC/APC adapter + 2 1.5m pigtails

SKU
IKU8221
Brands: Ikusi
€6.03 Tax included
Availability: In stock
24/48 Hours

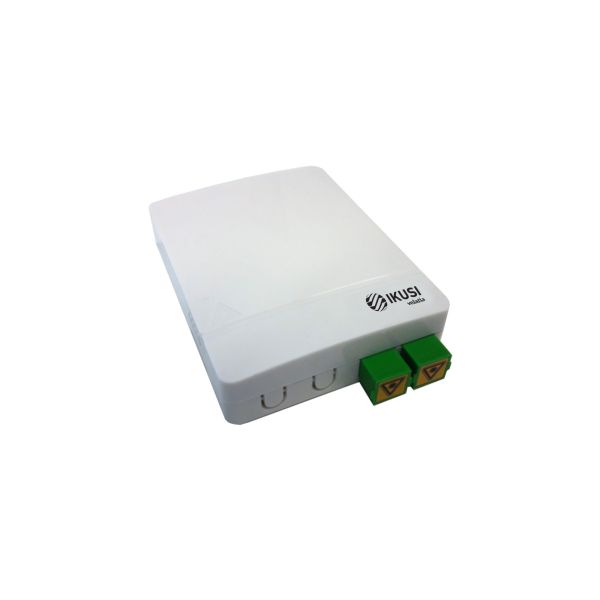

FO rosette with Fusion Tray+2x SC/APC adapter+2 pigtails of 1.5m

This fiber optic outlet comes with a fusion tray included and 2 SC/APC type ports.
Made of high quality ABS UL 94v-0 and white in color, the PAUF-002 model rosette comes with a protection index of 44. Its tray is hinged and has a lateral pressure closure system.
Ideal for FTTH installations, you can access the drop cable from the bottom, top or side, which makes it a very versatile outlet.
It has a capacity of 2 splices and 1 optical splitter. With a weight of only 67 gr.
*Adapters and pigtails are not included

-
+

Technical Specifications of the FO Rosette with Fusion Tray + 2x SC/APC adapter + 2 pigtails of 1.5m



Model

PAUF-002

Ref.

8221

Manufacturing material

ABS - UL 94V-0

Degree of protection

IP44





Dimensions

Width

82 mm

Length

105 mm

Height

23 mm

Cover

Removable cover

Closing system

Side pressure closure

Weight

67 gr

Colour

White (RAL9003)



Input ports

Type

2 lower; 1 upper; 1 side

Fixing

Snap-on tabs and flange holes

Output ports

Type

2 sockets for adapters type SC/LC Duplex

Fusion protection support

Yes

Total capacity of connections

2

Capacity for optical splitters

1

Fibre routing guide

Integrated in fusion tray

Curvature radius

40 mm

Wall fixing

3 screws+plugs m6x25 mm

Employment protection

2x 40 mm

Adapters and pigtail

Included

More Information
EAN 8435136482215
Hight 0.140
Length 0.300
Width 0.900
System DTT Optic Fiber
Serie 1.5m
Fiber type Singlemode
Entorno Interior
Product Brand Ikusi
