Front Panel 19” with 24 ports RJ45 CAT6A

SKU
PANEL24UTPCAT6A
Brands: Tecatel
€55.54 Tax included
Availability: In stock
24/48 Hours

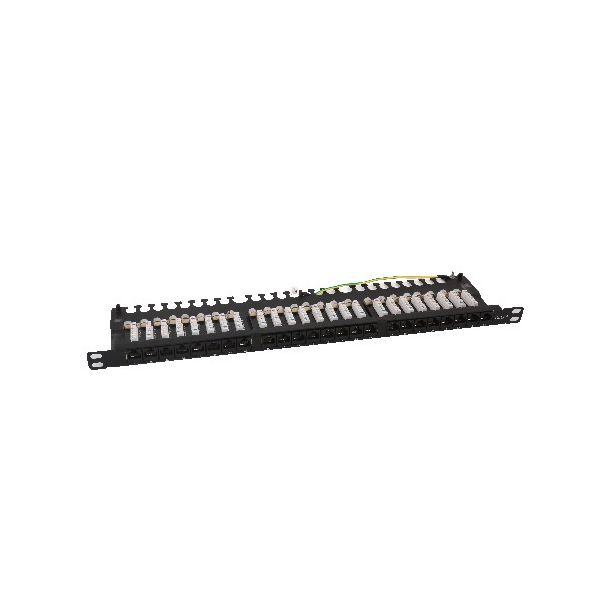

Front Panel 19” with 24 ports RJ45 CAT6A

This type of panel serves to connect to a computer network, they are the point where the network cabling is concentrated and from where it is distributed.

It consists of 24 category 6 RJ45 ports. This panel is indicated for use in 19” rack cabinets and is 0.5U. Complies with ICT2 regulations.

It is very easy to use and install. In its back it incorporates a comb to fix the cables, leaving the installation much more orderly and avoiding the movement and disconnection of the cables that may occur accidentally

-
+

Technical Specifications Front Panel 19 ”with 24 ports RJ45 CAT6A



Contact resistance

100 mΩ

Insulation resistance

1.000 MΩ

Color

Black

Life time

> 750 cycles

Conductor size supported

0,40 mm ~ 0,64 mm

Operating temperature range

0 oC ~ 70 oC

Operating temperature storage

-40 oC ~ 85 oC

Housing material

Plastic

Material frame

Steel

Dimensions

High 22,2 mm, Long 482,6 mm, Width 100 mm

More Information
EAN 8430549054547
Hight 0.520
Length 0.060
Width 0.150
RED - System Rack Accessories
RED - SERIE 19"
Color Black
Width 19"
Rack accessories Panels
Frame Wall
Product Brand Tecatel
