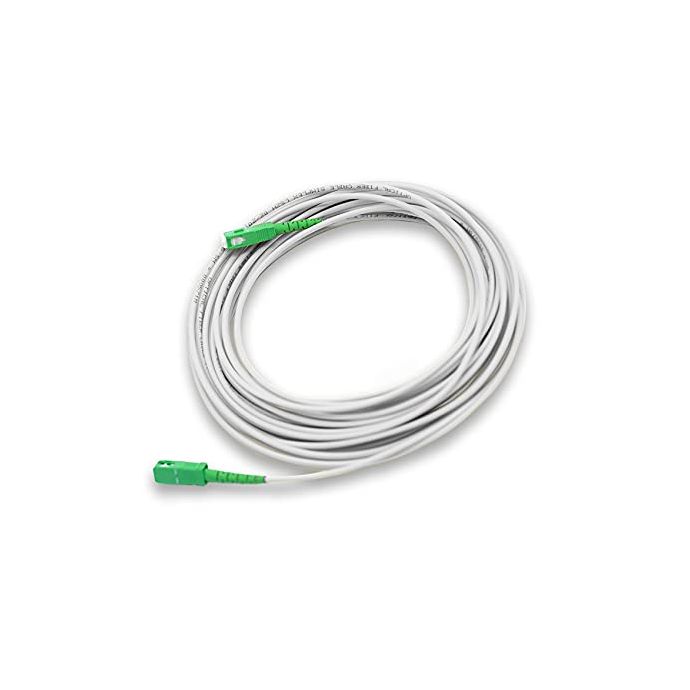

G657A2 single-mode SC / APC patch cord, 25 m long

Name: G657A2 single-mode SC / APC patch cord, 25 m long
Brand: Bitel Group
SKU: LATFO25M
Price: 13.99 EUR
Availability: InStock

SKU

LATFO25M

Brands: Bitel Group

€13.99 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

25 meter SC / APC fiber optic patch cord

The 25-meter fiber optic cable allows the transmission of optical signal from one device to another with a separation between them of 25 meters.

This fiber optic hose can be used both indoors and outdoors, has an external diameter of 3 mm and can be used in installations with already known lengths.

Details

The 25m fiber optic patch cord allows the connection of two devices separated by a distance of 25 meters.

What are the technical characteristics of the fiber optic cable?

G657-A2 single-mode fiber optic hose, 9/125 μm 3 mm
Connectorized SC / APC to SC / APC
LAN and MAN
CATV system
Digital communication system
Meets ICT2 regulations
Insertion loss: <0.3 dB
Return loss:> 60 dB
LSZH cover

What connectors does this hose use?

It uses an SC connector, which is a low loss fiber optic connector, widely used in SM installations and Network and CATV applications, which was designed for use in high vibration environments, and an APC (angular) polish that favors the coupling between two fibers on a surface inclined to 8 degrees. This means that reflections of the light transition do not return to the core of the fiber, which increases the return loss to values higher than 60 dB.
